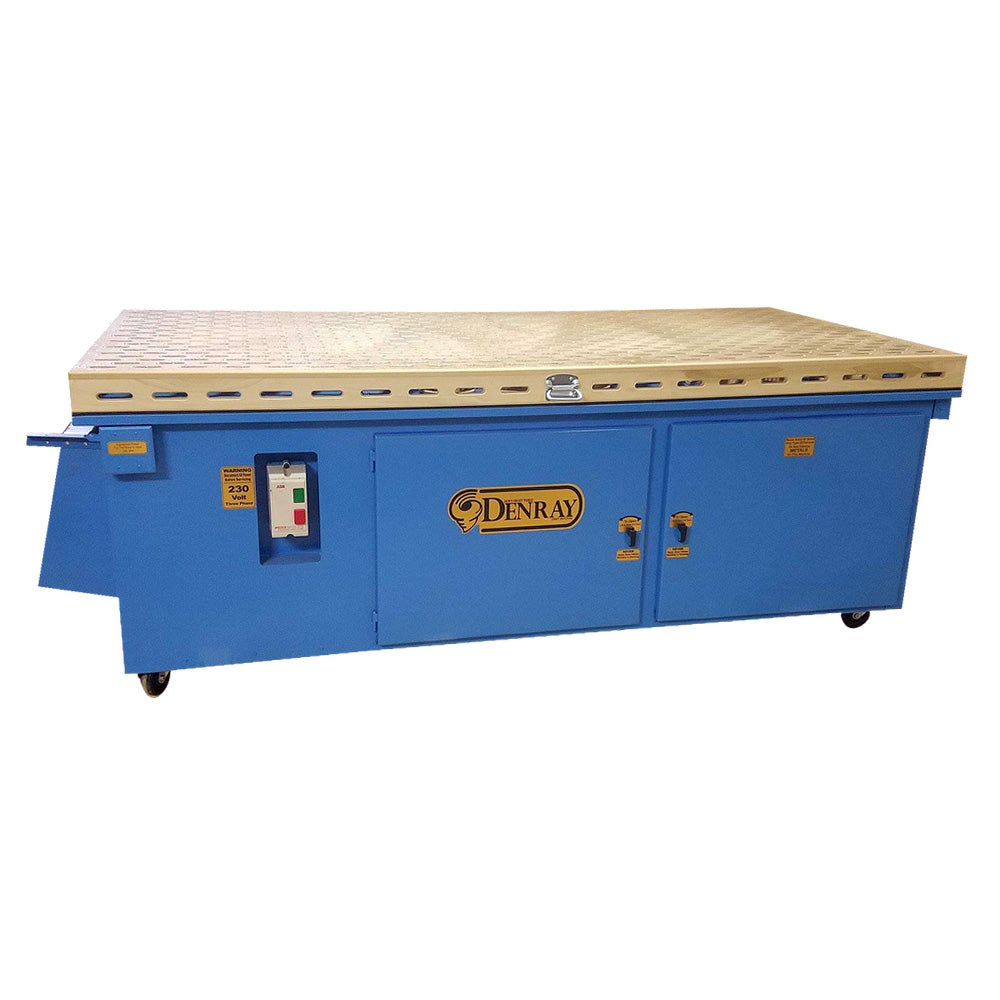

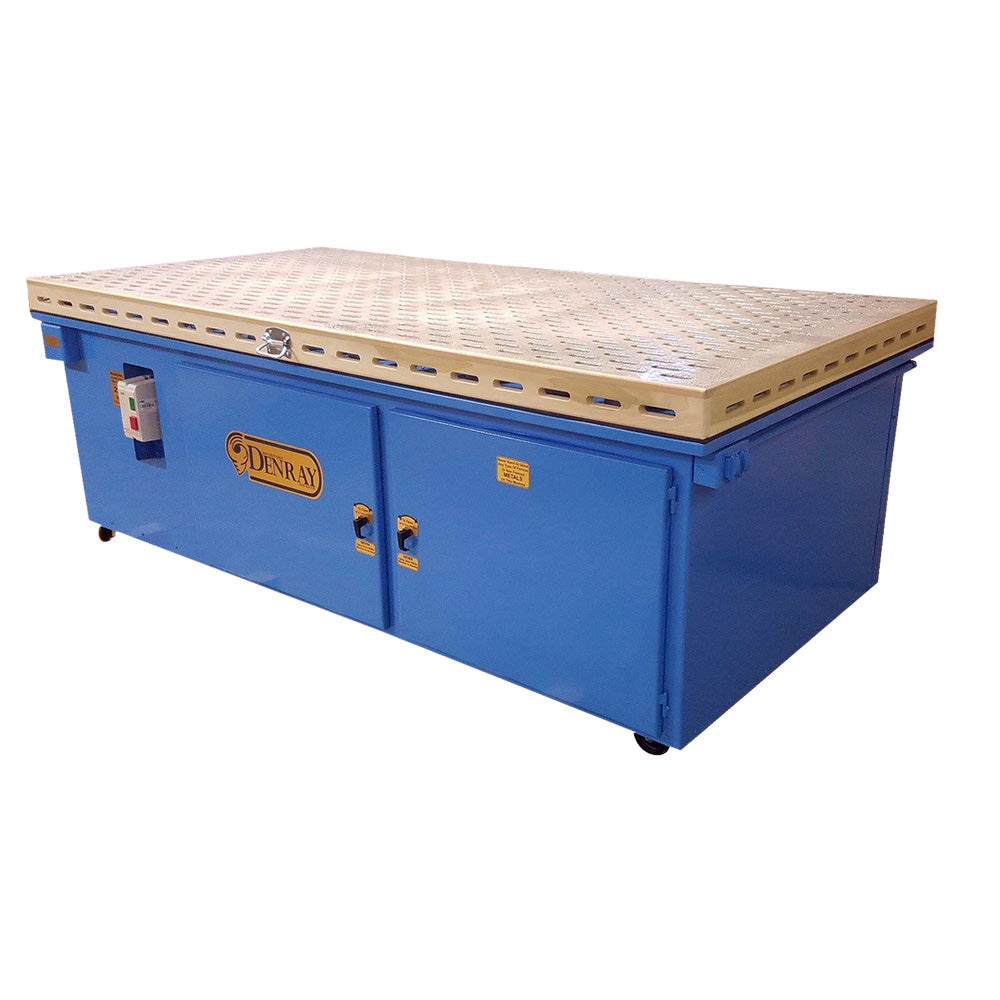

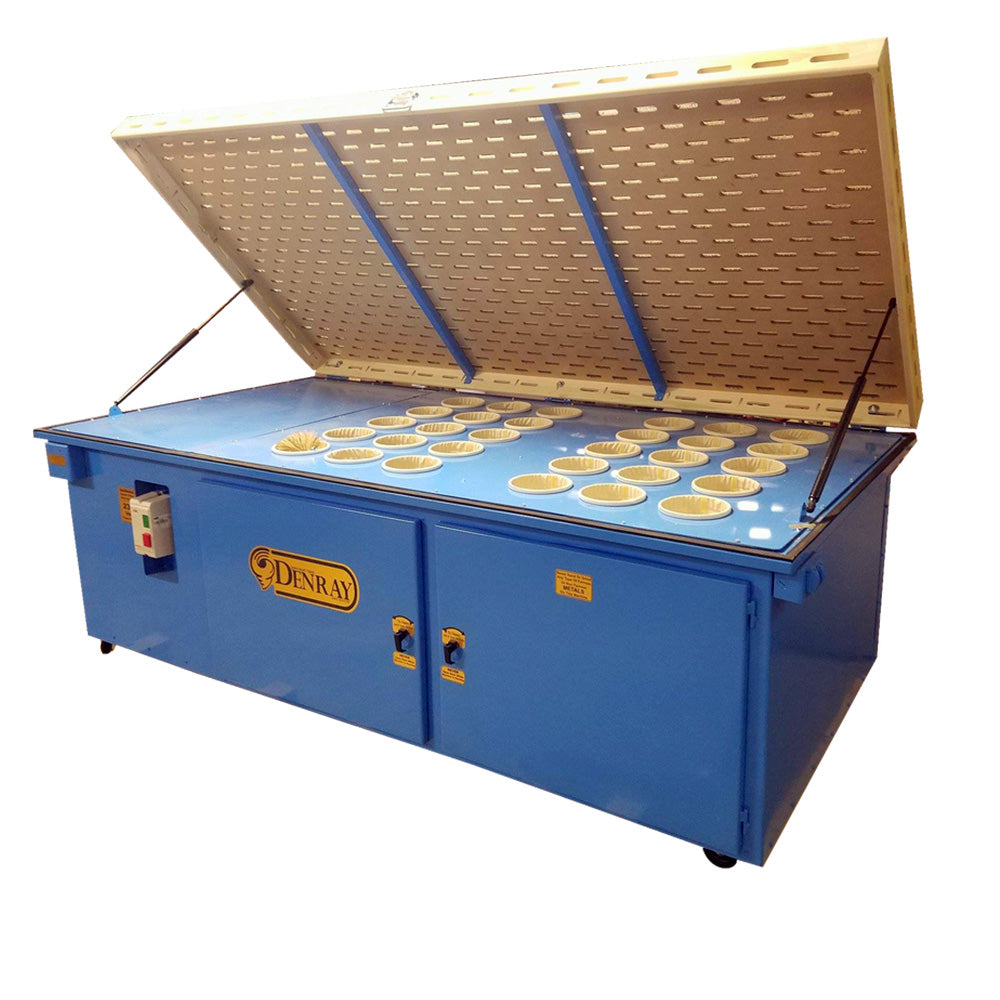

Denray Model 9600 Tube Filtration Downdraft Table

This model is ideal for larger jobs, as well as accommodating to two or three jobs going at the same time on the table. The 9600 is ideal for wood dust. This model comes equipped with tube filtration which cleans with a 99% capture rate at 1 micron, creating a much superior filtration system than any pleated filters. The 9600 comes standard with a filter cleaning brush/handle for manually cleaning the filters, casters and a rubber coated top.

Product Information
• 96" x 48"
• 36" Height
• 930 lbs
• 3 HP Motor
• 18" Fan
• 4300 CFM
• 81 Decibels Sound Level

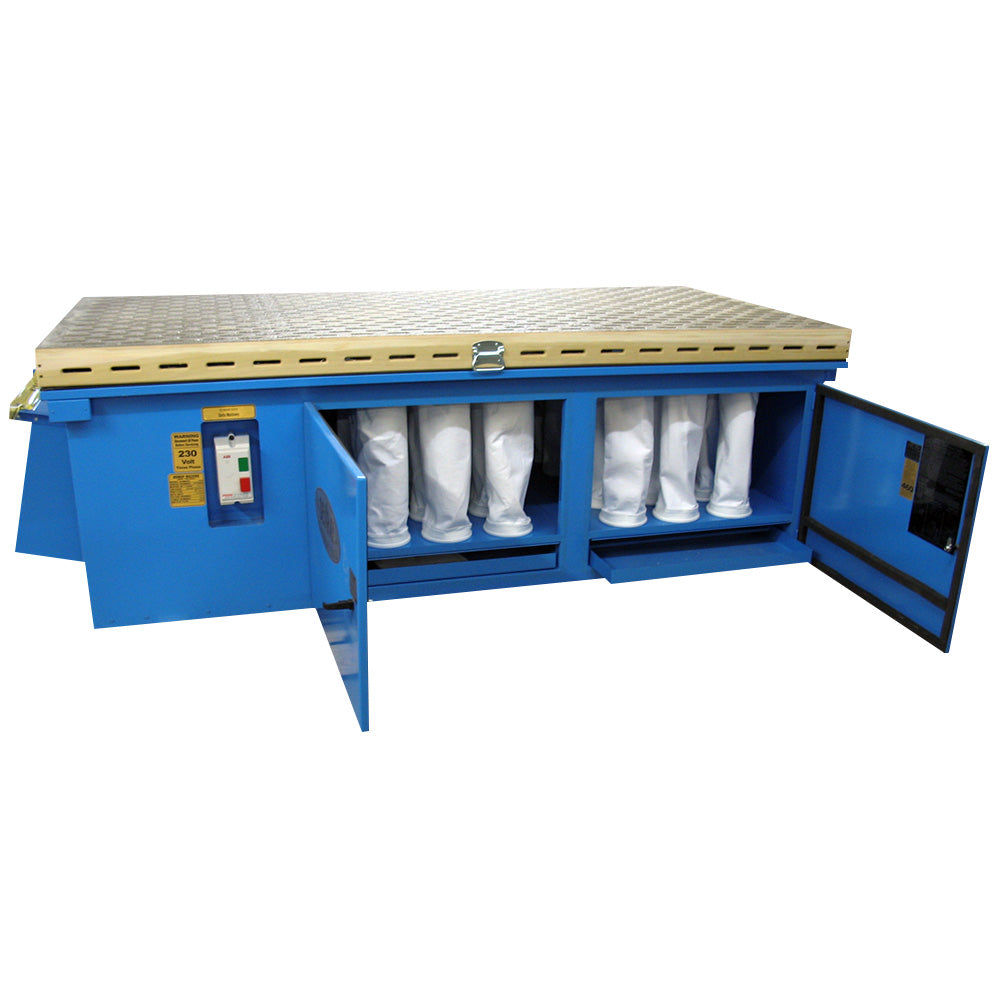

• 30 Tube Filters
• Casters
• 4 Receptacles

Phase/Voltage Options

SINGLE-PHASE
220 VOLTAGE (11.8 AMPS)
THREE-PHASE
230 VOLTAGE (8.2 AMPS)
460 VOLTAGE (4.1 AMPS)
575 VOLTAGE (3.4 AMPS)

Additional Options
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10-12 dbs.)
• Three-sided Hinged Safety Shield
• HDPE Plastic Tabletop
• ​Larger Motor/Fan Upgrade
