Evans Midwest PR257 Pinch Roller
Evans Midwest PR257 Pinch Roller is backordered and will ship as soon as it is back in stock.

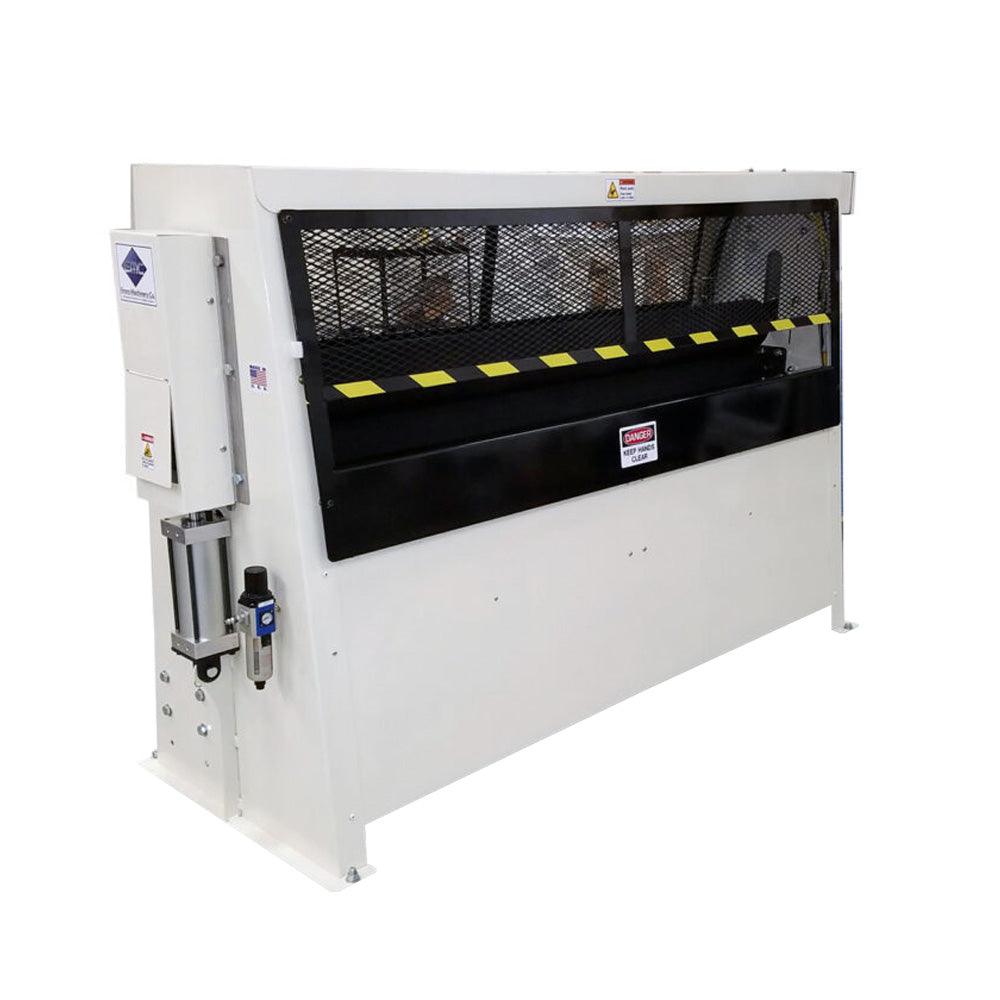

The Evans Machinery Model 0257 Pinch Roller is a key asset for laminating shops, both large and small. The top roller is easily adjustable to the thickness of the work being laminated. Simply insert the provided spacers 1/8", ¼", and ½" to acquire the desired thickness. The 0257 is specifically designed to laminate using either contact adhesives or the fast bond PVA’s. The Evans Machinery unique design of the pressure roller allows for uniform and even bonding of the laminate to the substrate.
• Safety Gates on In-Feed and Out-Feed
• Solid Top and Bottom Rollers
• Feed Rate: 50' FPM (Variable Speed Option Available)
• Maximum Width: 62" (64" Option Available)
• Maximum Thickness: 2"
• Thickness adjustable by spacers (hand crank optional)
• Work Height: 30-½" (Optional Riser Available)
• Drive Motor: 1/2 HP
• Electrical: 120 V, 1 PH,
• 60 Hz (Options Available)
• Air Requirement: 100 PSI
Request a Quote
Enter your email and submit a request for a quote for the
Highland Article #: PR257
Evans Midwest PR257 Pinch Roller
