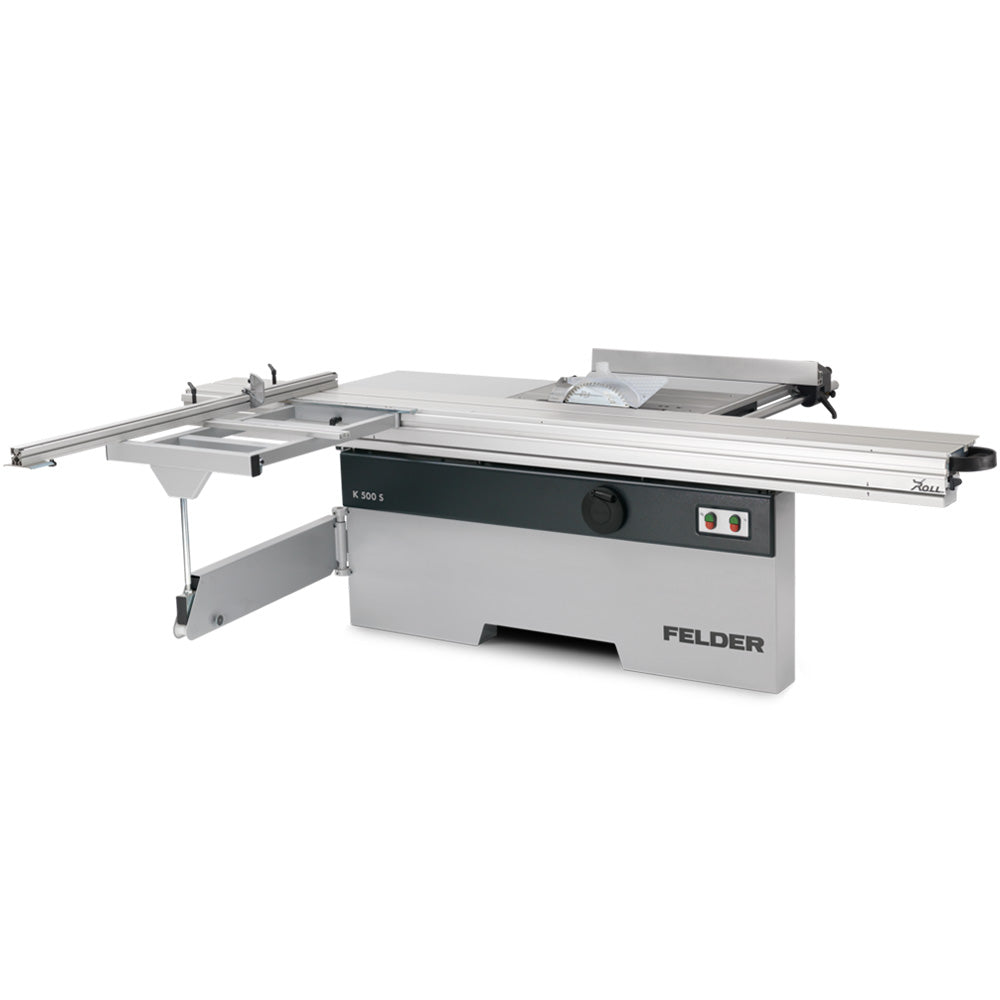

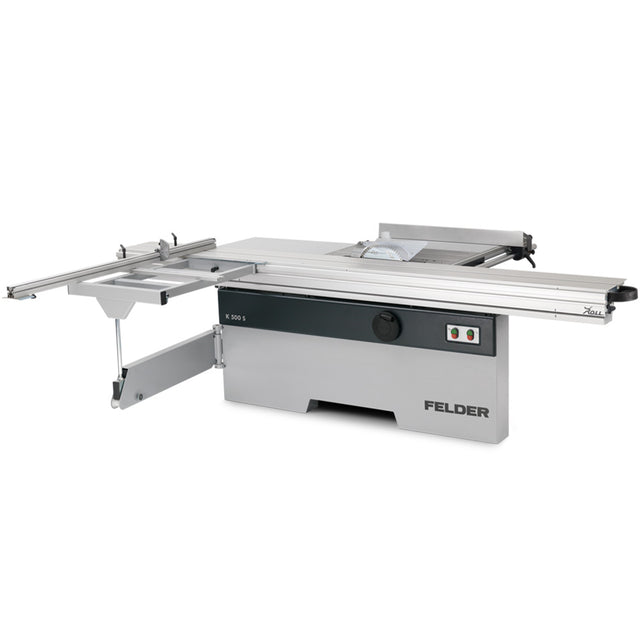

Felder K 500 S Sliding Table Panel Saw

K 500 S - the “small” Panel Saw from FELDER

Do not be fooled by the inconspicuous exterior of the FELDER K 500 S. The sliding table saw is a true power pack, despite its size. With the innovative, tilting saw blade unit and precision double guiding for precise angle and height adjustment, the K500 S guarantees a new dimension of efficiency. The built-in, electrically operated scoring saw blade with a Ø of 120 mm makes cuts even through materials with sensitive surfaces a breeze. At the heart of the FELDER K 500 S, the powerful circular saw unit a circular saw shaft, which allows a saw blade with up to Ø 315 mm while using of the scoring unit. A ten year guarantee on the "X-Roll" sliding table, highest manufacturing quality and strict FELDER production standards make this sliding table panel saw reliable partner for many years to come.

Efficiency meets ease of use: 104 mm cutting height with a saw blade diameter of 315 mm
Combined use of an electric Ø 120 mm scoring unit with a Ø 315 mm main saw blade
"Easy-Glide" tilting segment guide with 6 year guarantee
Patented "X-Roll" sliding table with 10 year guarantee
Cutting length 2500–3200 mm
Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300
Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)

The new circular saw unit: Efficiency meets operating comfort
The enhanced circular saw unit with the patented tilt segment "Easy-Glide" enables the combination of a main saw blade with a Ø from 250 mm to Ø 315 mm and a Ø 120 mm scoring unit.

"Easy-Glide" 6 year warranty
The patented tilt segment “Easy-Glide” fulfills the highest requirements in businesses and industries. A precise, guided, doublesided support, guarantees maximum load bearing and tolerance free tilting and is absolutely maintenance free. A special, highly durable synthetic material situated in the guide of the tilting segment ensures extremely smooth movement and long-lasting precision. The tilting guide system, a synthetic material tried and tested in aerospace and lock construction, works without the requirement of lubrication and is totally resistant to dust. With a 6 year factory guarantee this Felder component offers reliabilty for many years to come.

Circular Saw Shaft
The electronically balanced saw arbor with dual bearing seat system is powered via a Poly-V belt. Combined this results in an almost 100 % trans­mission of power to the saw blade. The saw arbor diameter on our machinery is a standard European size of 30 mm (1,18"). We offer this size of arbor for increased stability when performing a bigger cut and also more user safety when especially using dado tooling. The standard US size arbor is 16 mm (5/8"). This is almost half the diameter of our arbor and is intended for lighter machinery with small tooling. The European 30 mm diameter tooling is available for various suppliers throughout the US and existing tooling can also be resized to fit our machinery. Take a step "UP" in your machine and also in your tooling. Please visit our on-line shop to view the range of tools we can offer.

Scoring Unit (optional)
Sensational: An electric scoring unit as standard

Dado
The Felder 500 Series saw assembly is fully compatible with dado tooling. Thanks to a removable table insert and flanges, specialized Felder dado tooling can be used.

Extractor Hose Mounting
The optimized extraction pipe guide guarantees that there is always enough space and a clean working surface.

The NEW Felder Overhead Saw Guard
Highest operating safety and maximum flexibility when processing large dimensioned workpieces: the new Felder overhead saw guard can be swung away easily and is always there where it is required.
