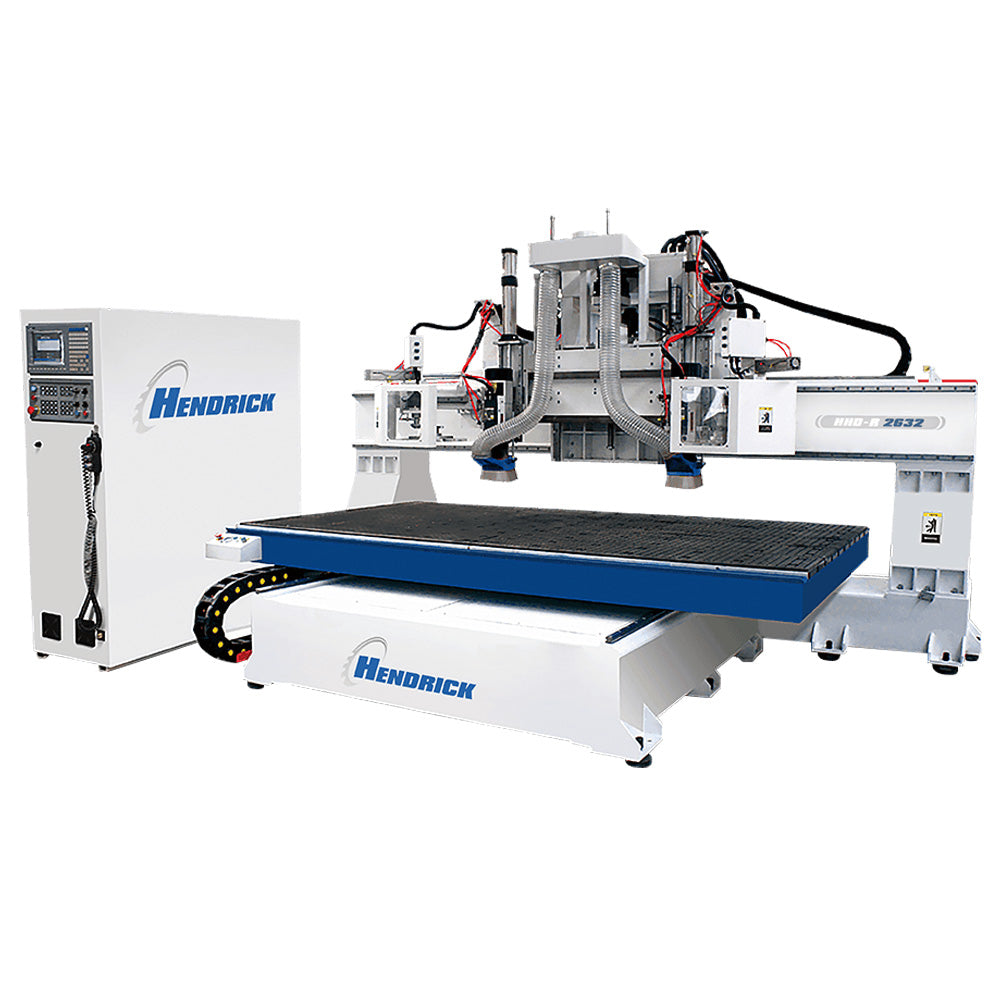

Hendrick HHD-R Series 3-Axis CNC Router

Call for Price

The HHD–R Series 3–axis CNC router provides superior control, versatility, and durability. This industrial CNC router is exclusively designed to deliver 24/7 uptime. The HHD–R can accurately position and cut at high speeds, leaving an exceptional finish. Choose between a moving gantry or moving table design to best suit your workspace and production needs. The HHD–R easily accommodates the needs of even the most demanding productions, handling everything from solid wood furniture to carbon mixed compounds. Regardless of the model you choose, the HHD–R Series 3–axis CNC router will never fail to impress.

HHD–R CNC Router Details

Standard Table Sizes 8' x 4' (2500mm x 1230mm)
10' x 5' (3100mm x 1560mm)
12' x 6.5' (4020mm x 2050mm)
X/Y Axis Precision Ground Helical Rack and Pinion Drive
Z Axis Precision Ball Screw
Z Axis Travel 13" (330mm)
Rapid Traverse Speed 2,400" per min (60m/min)
Cutting Speed Up to 800" per min (20m/min)

HHD–R Features

Standard Optional
Multi Zone Vacuum Table HSD ISO30 High Frequency Spindle(s)
Pop–Up Location Pins Spray Mist Coolant
Becker Vacuum Pump Two Spindle Configuration with Two 8 Station Automatic Tool Changers
HSD HSK63–F High Frequency Spindle Independent Head Spacing by Program
Automatic Rotary Tool Changer(s) Multi Boring Unit with 9 Vertical, 6 Horizontal Independently Programmable Boring Spindles on 32mm centers andamp; 1 Saw Head
OSAI Open CNC Controller Multi Boring Unit with 14 Vertical, 6 Horizontal Independently Programmable Boring Spindles on 32mm centers andamp; Two Saw Heads
Automatic Tool Length Measurement Custom Table Sizes and Configurations Available

The HHD–R Series Routes
• Corrugated
• Aluminum
• Plastic
• Wood

Material Positioning
Achieve exact positioning material with automatic adjustable pop–up stops.

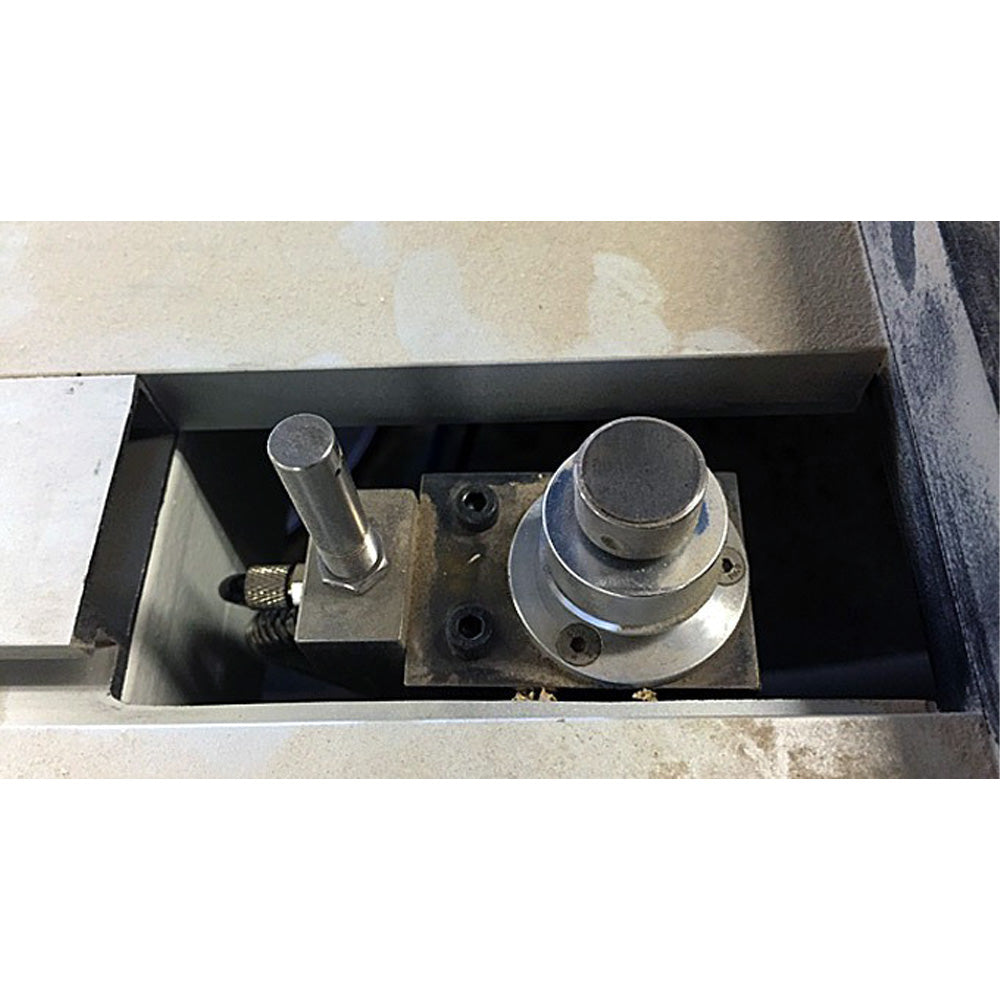

Error–Free Tool Measurement
Eliminate depth cutting errors. All your operator has to do is insert the cutting tool into the tool holder, and the machine identifies the tool depth (Z) and enters the value into its library.

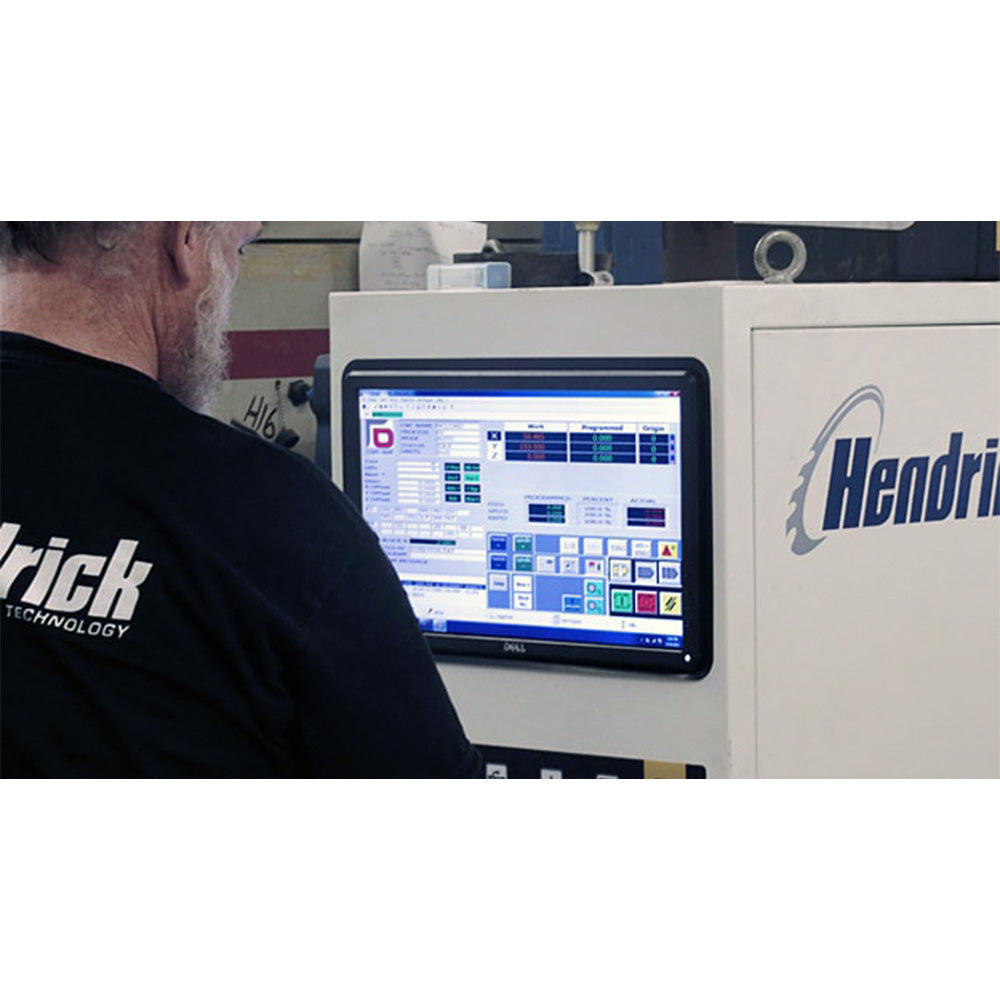

Versatile Control System
OSAI Open Industrial Windows PC controller with full color LCD display, large capacity program hard drive, and LAN–ready Ethernet interface.
• International standard machine code language (Gandamp;M), integrates with all industry standard CAD/CAM programming software packages, built–in diagnostics, tool path graphics and more.
• Manual Pulse Generator (MPG) allowing manual axis movements for fine adjustments.

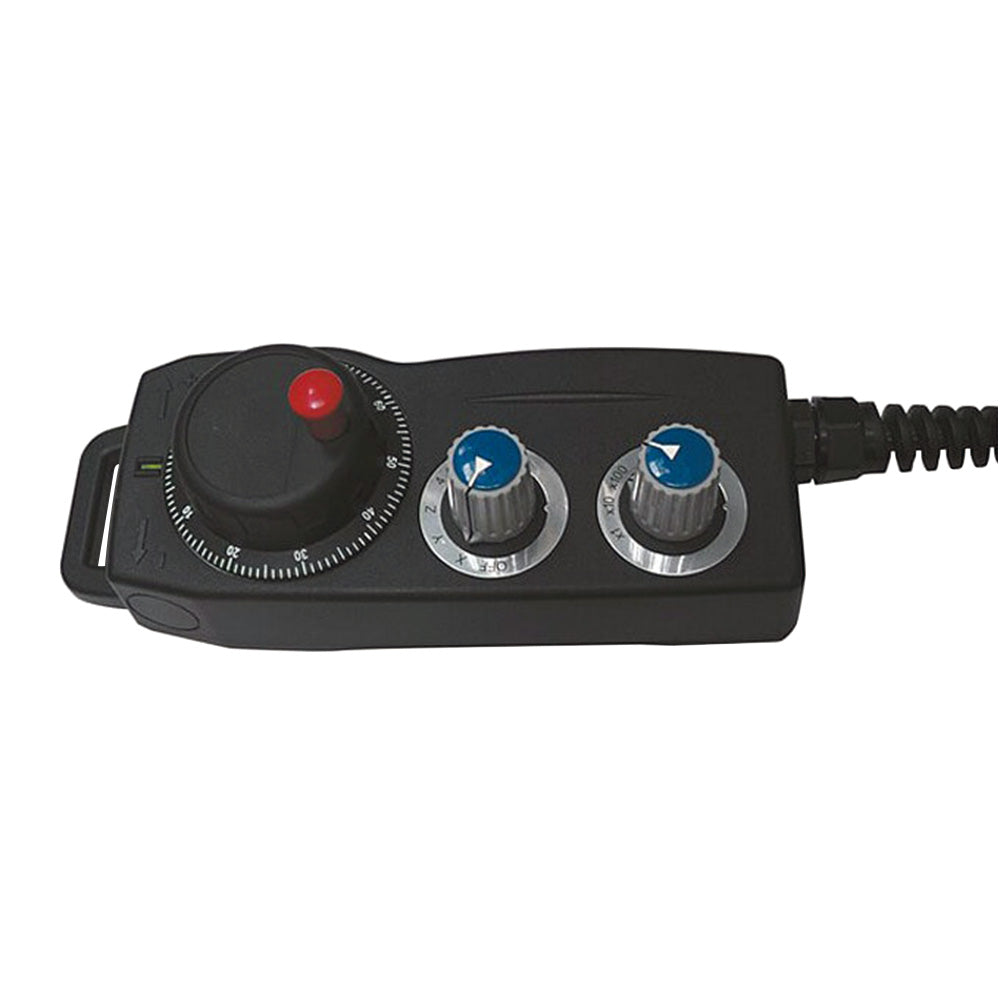

Manual Pulse Generator
MPG allows manual axis movements for fine adjustments.
