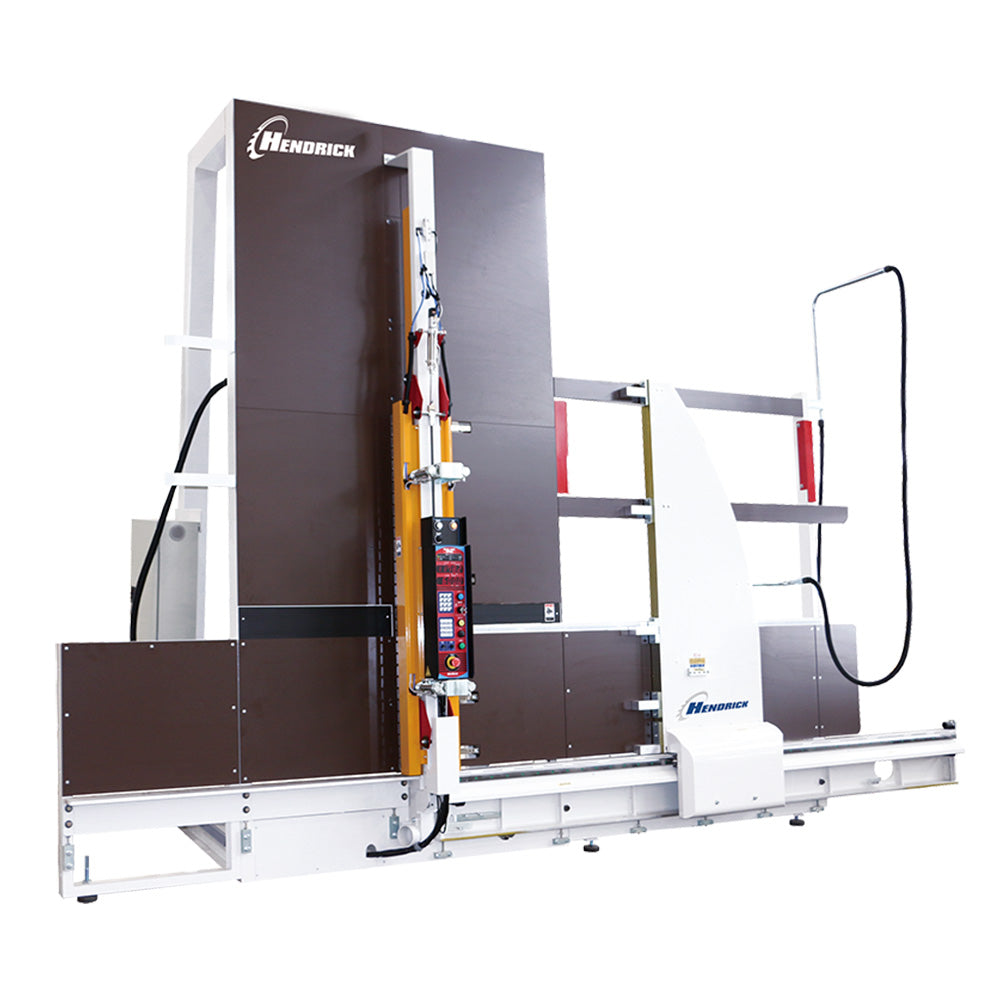

Hendrick SPN2 Computerized Vertical Beam Saw

The SPN2 saves floor space while maintaining higher volume. Precision accuracy is achieved by using a unique full–length pneumatic pressure beam to clamp stacked panels across the entire cutting area. Once the material is secured, the saw blade emerges to cut, then retracts behind the table for the return stroke as the pressure beam releases. Then the machine automatically indexes your material for the next cut. The fully enclosed saw blade keeps operators safe in all three of its cut modes: top–to–bottom, scoring, and reciprocating.

The SPN2’s SINUC3000 digital and HMI touchscreen controllers offer fully CNC functionality. The auto pusher AC servo controlled drive system will index and cut repetitively to the programmed dimensions automatically without operator intervention. The fully computerized SPN2 operates identical to the more expensive horizontal beam saws but require significantly less floor space.

SPN2 Standard Features
• Standard Lengths of Cut: 6’, 8’ & 10’
• HMI Touchscreen Controller w/ Large Program Storage Capacity
• Automatic Indexing System via AC Servo System
• Linear Rail/Bearing Guideway System for Precise Cuts
• 3" Cutting Depth
• 7.5 HP Main Blade Motor
• Direct Drive System (no belts)
• Safety Shields
• Variable Saw Carriage Speed
• Single Blade Scoring System
• Fully Automatic Cutting with Easy–To–Use Control Panel
• Solid Phenolic Table Tops
