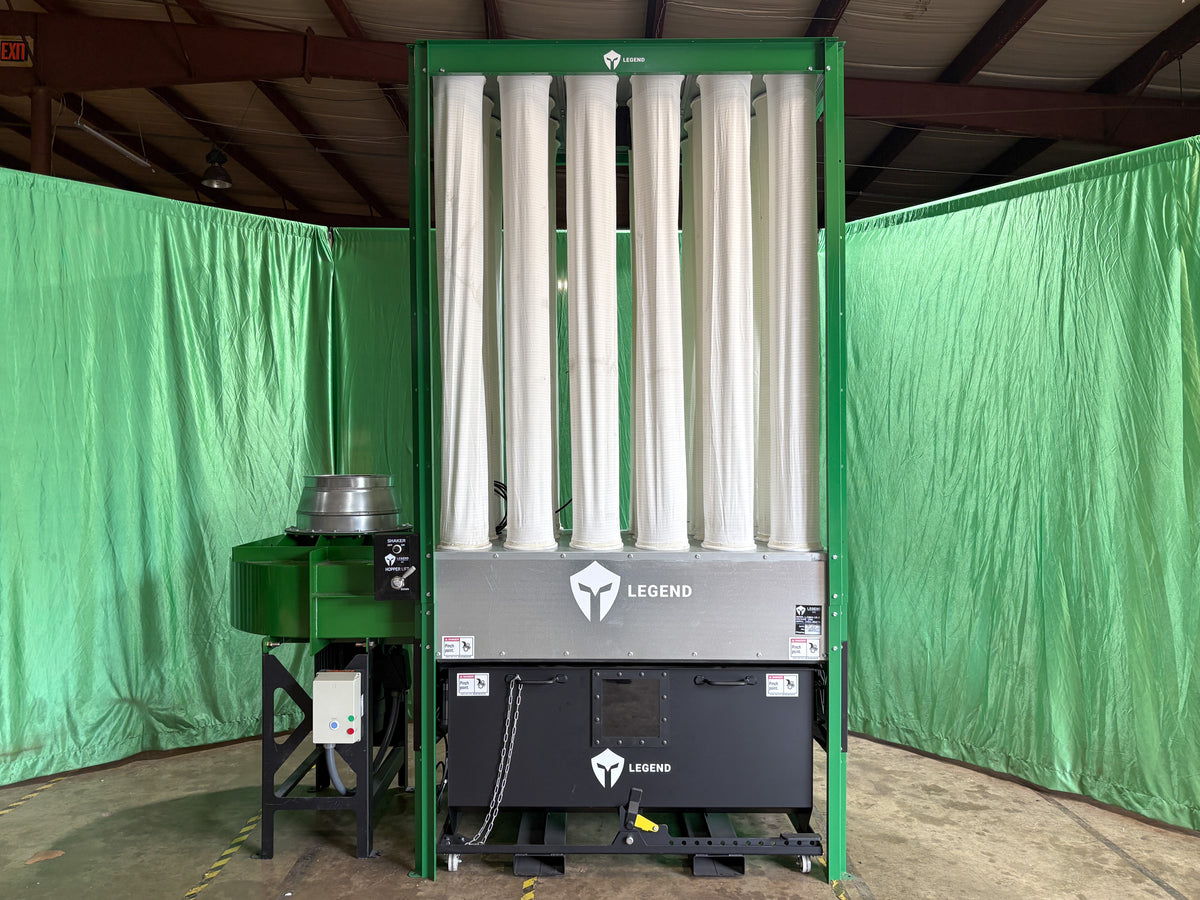

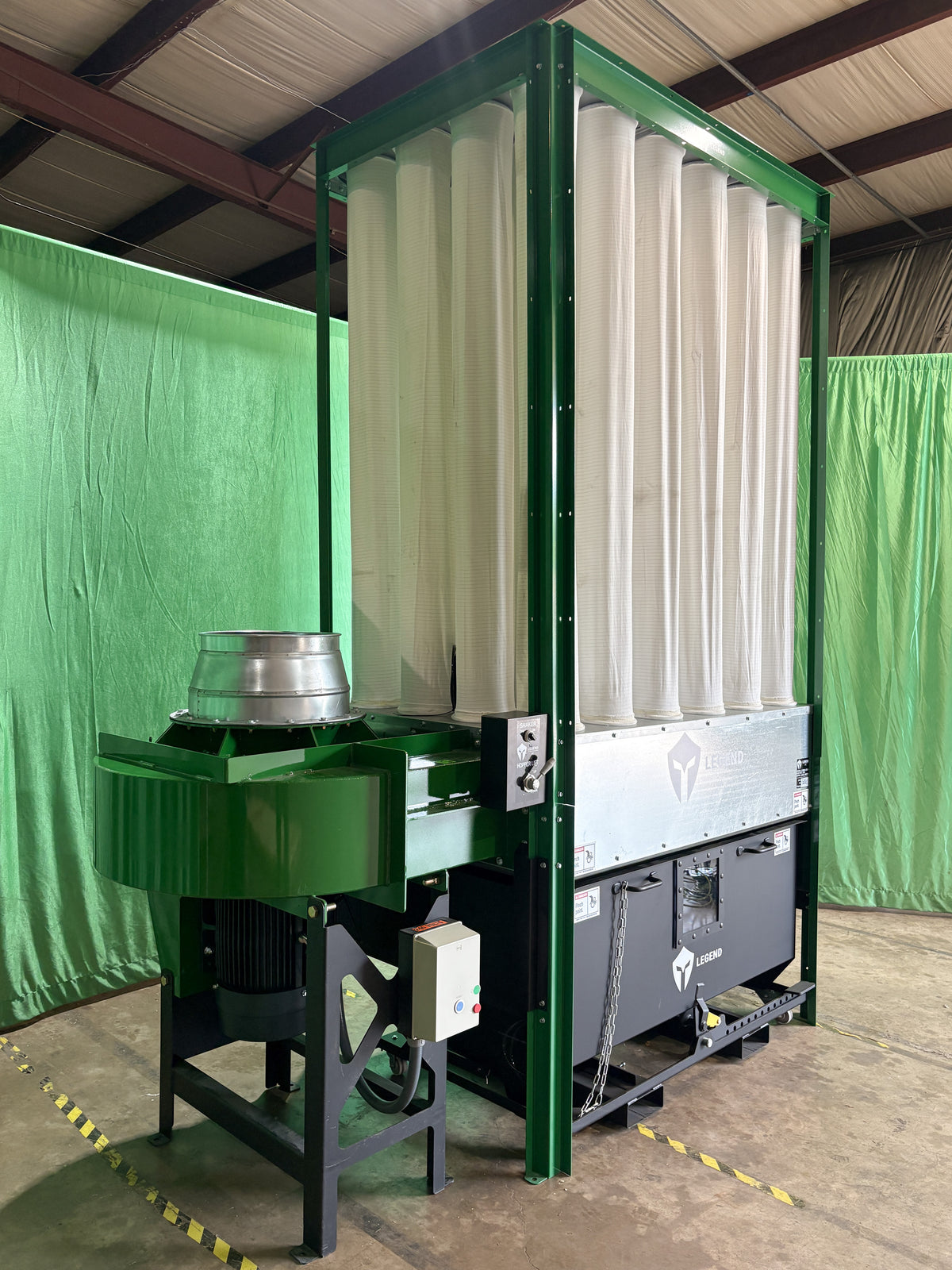

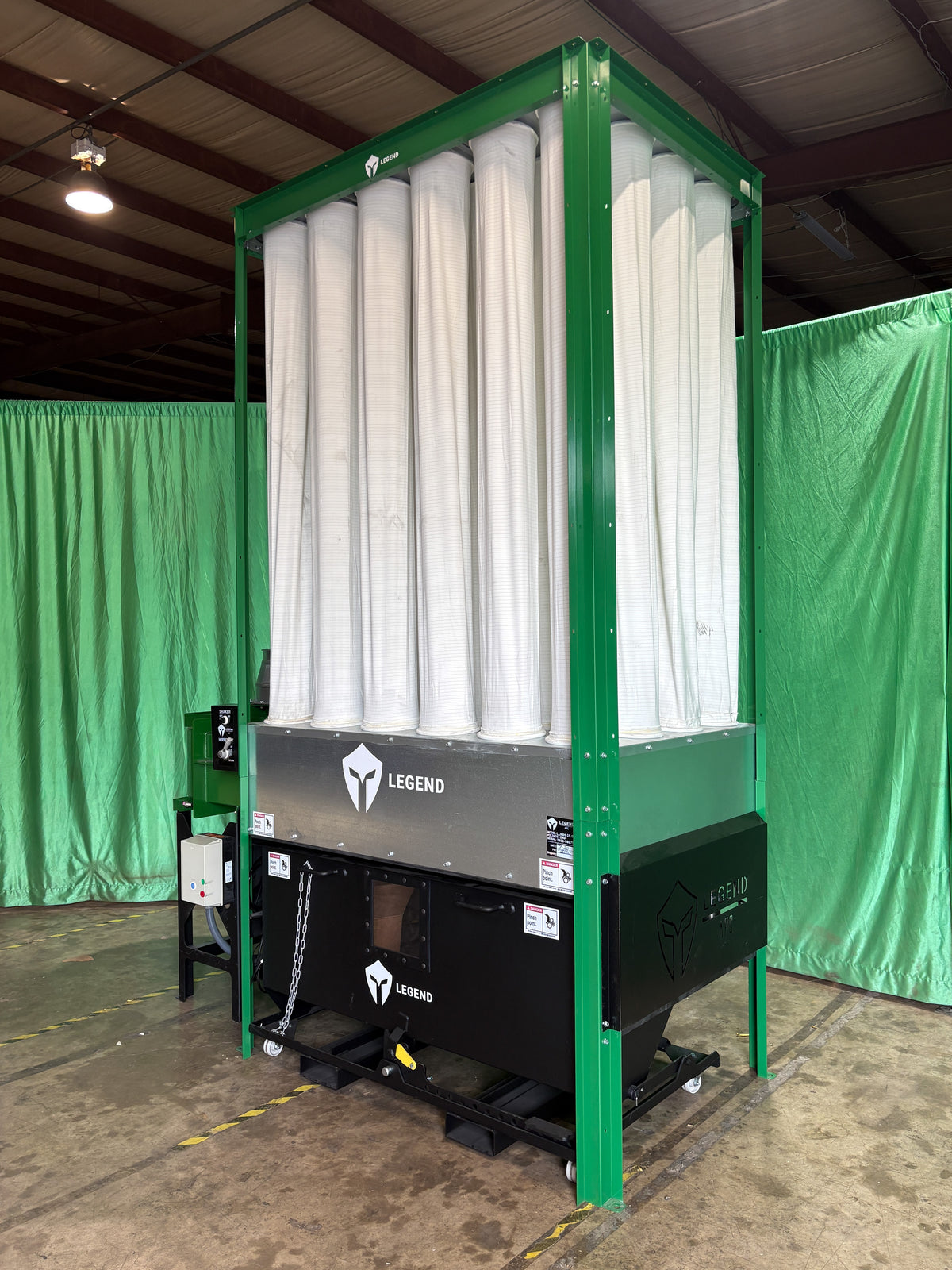

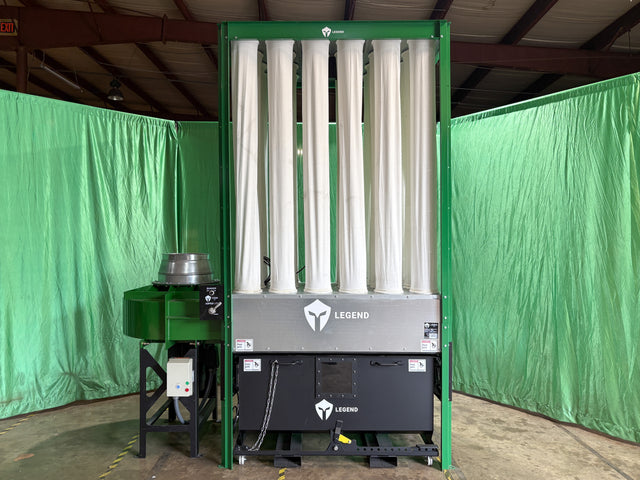

Legend Baghouse Collector

Baghouse Collector
LOBH-15 Model
Specifications
Woodworking | Plastics | Dry Dusts

Performance Specifications
Airflow Capacity: 4,000–5,000 CFM
Static Pressure Drop:
7.0 in. w.g. at 5,000 CFM
10.5 in. w.g. at 4,000 CFM

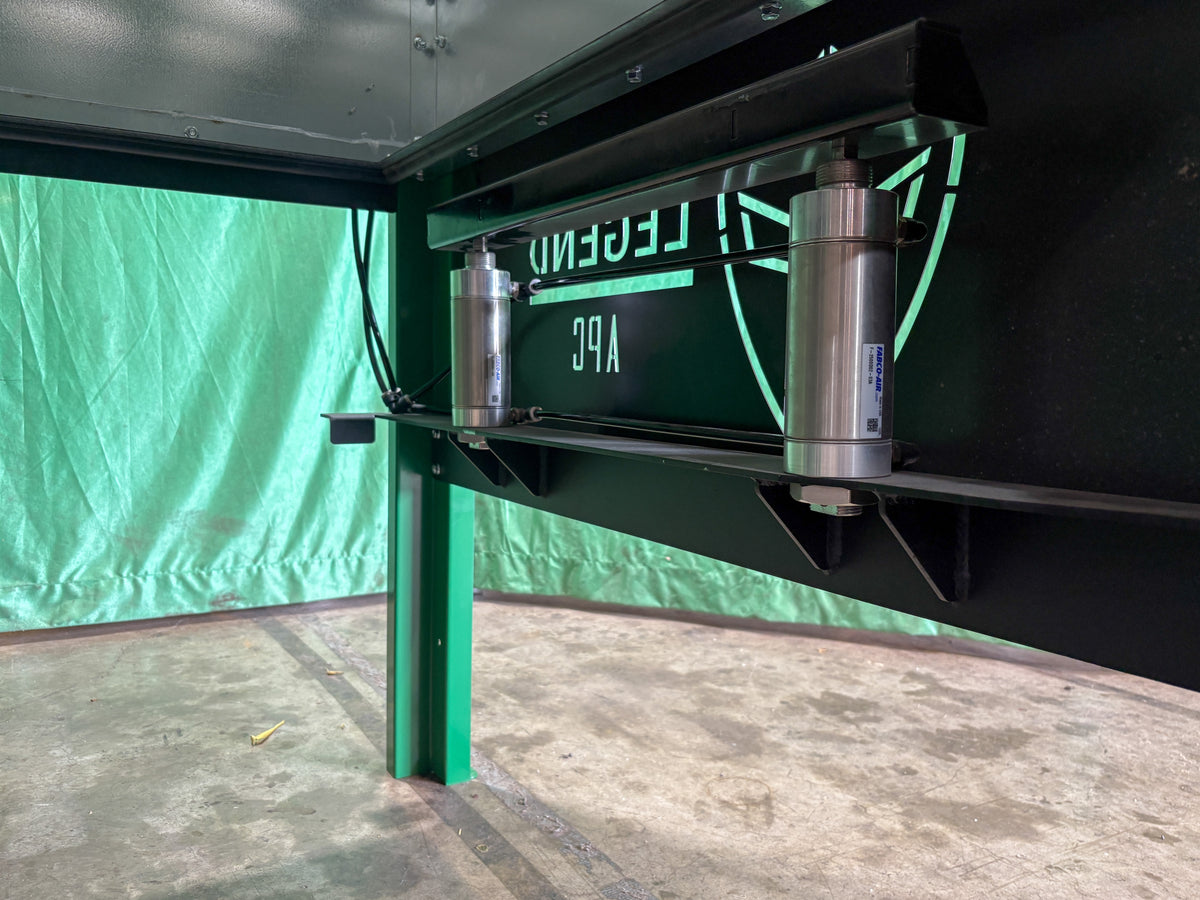

Pressure required for the QC Hopper:
90 psi
Physical Dimensions & Weight
Overall Footprint: 45" W × 95" L
Overall Height: 130"
Height to Center of Inlet: 51.5"
Shipping Weight: 820 lbs
Dust Collection & Storage
Barrel Size: 18" Diameter × 32" Height
(3 in quantity)
Empty Barrel Weight: 40 lbs
Bag Capacity:
30–40 gallons per bag
30–35 gallons per discharge barrel

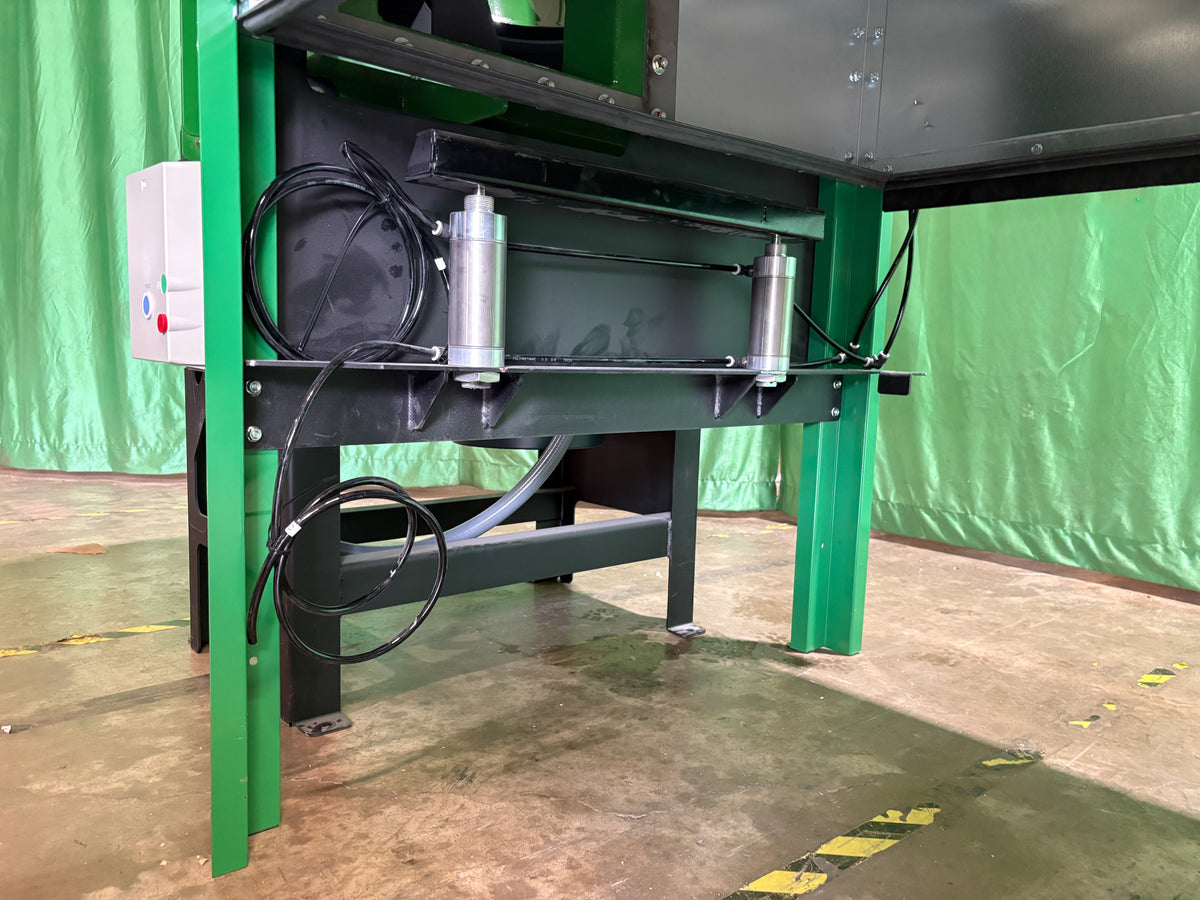

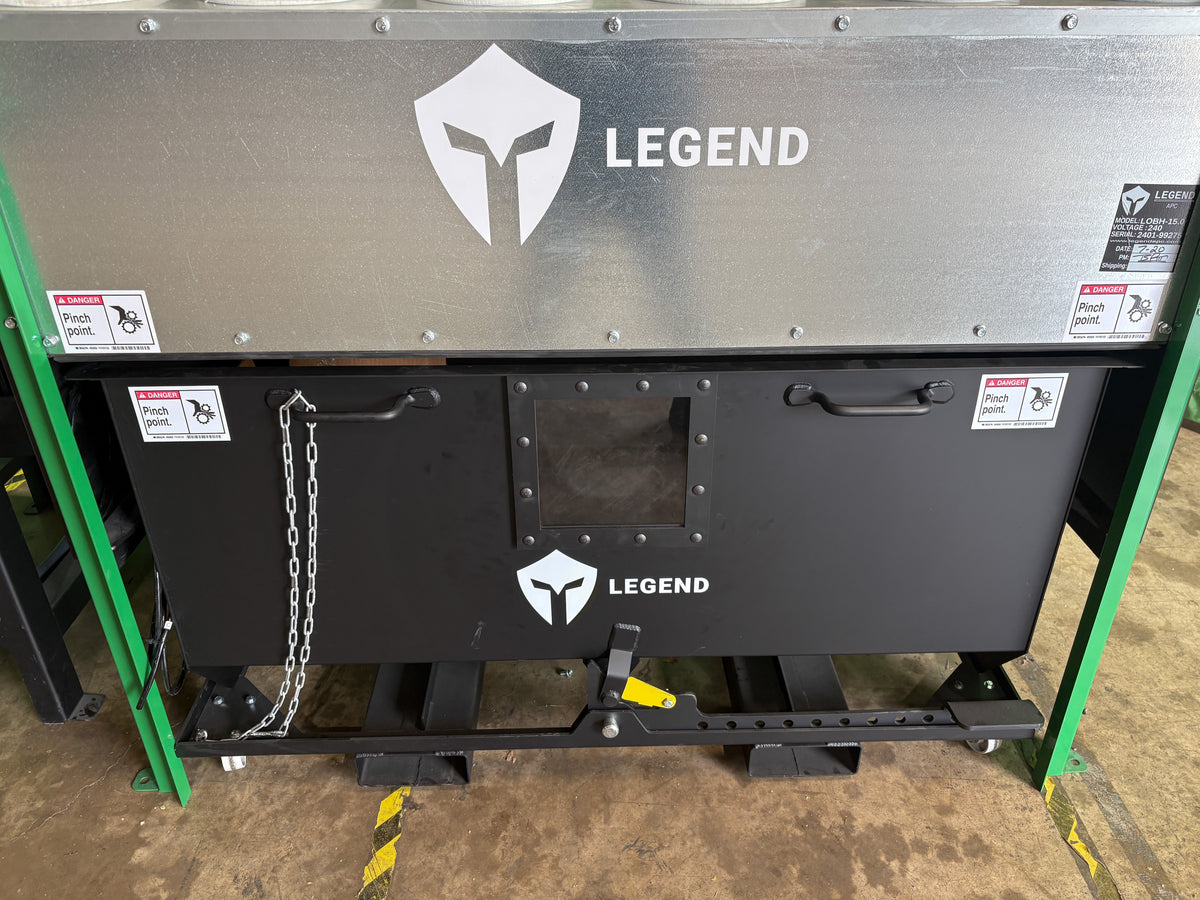

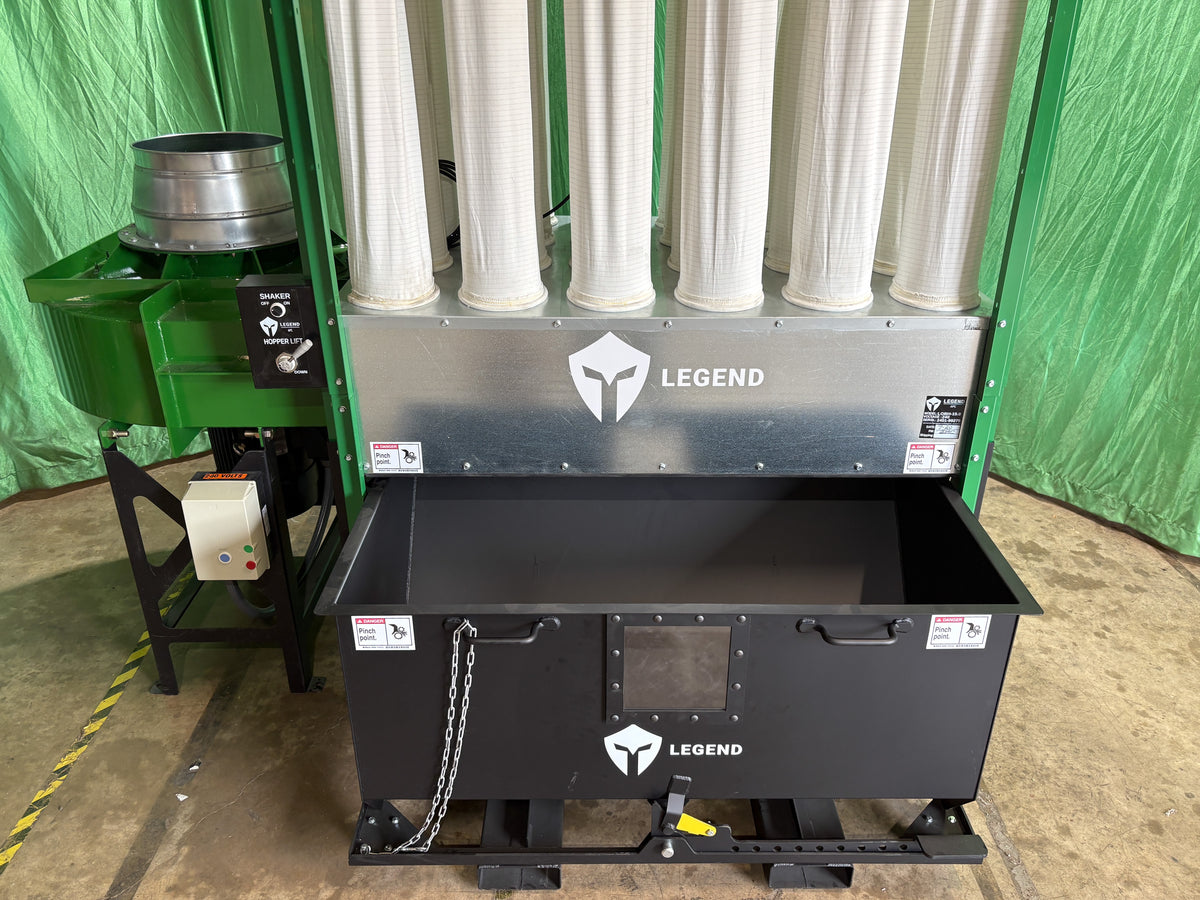

Quick Change Hopper Capacity: 1.02
cubic yards
Inlet & Discharge Configuration
Inlet Diameter: 16"
Discharge Ports: Three 18" Drop-Out
Collars

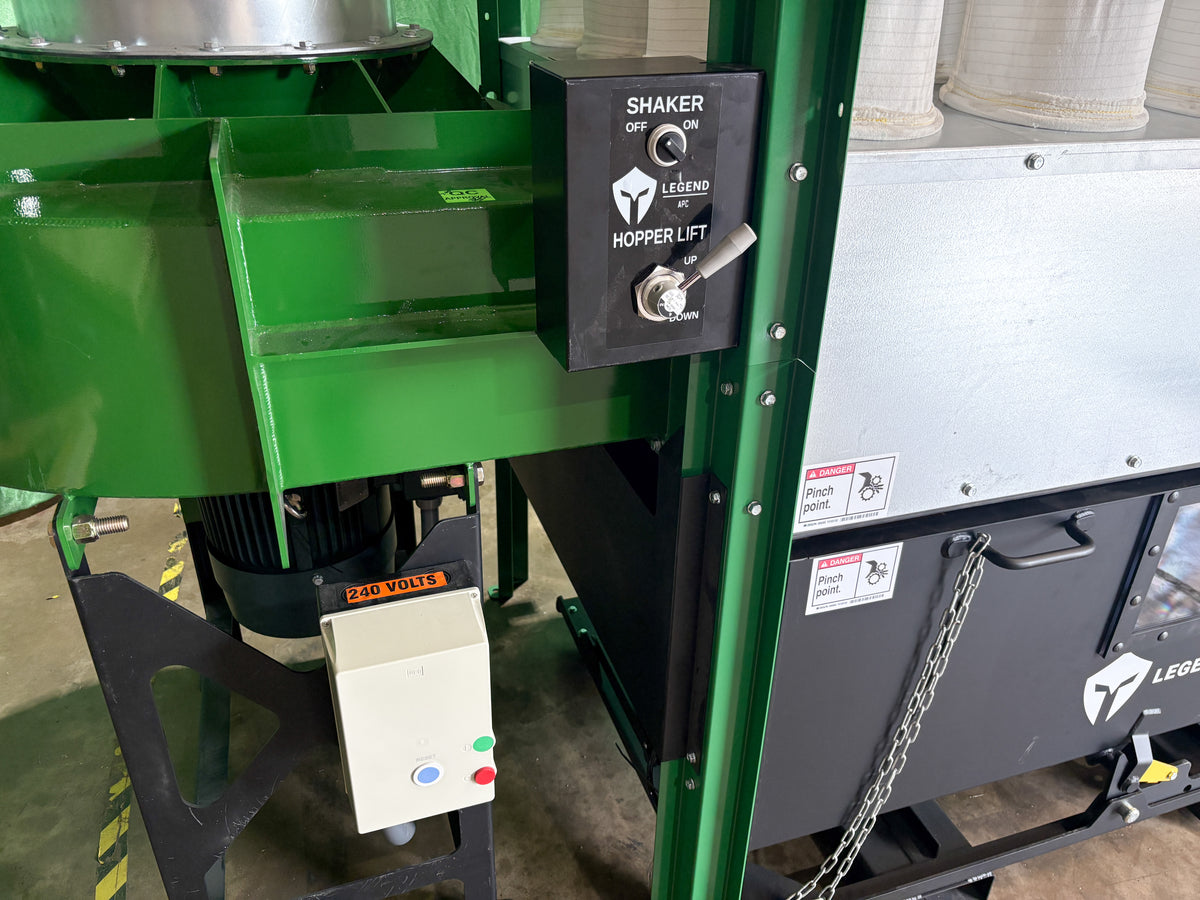

Motor & Electrical
Motor Type: Baldor Industrial Motor
Available Horsepower Options: 15HP
Voltage & Phase:
Pre-wired for 480 VAC, 3-Phase
Optional 240 VAC, 3-Phase
Power Connection: 4 Bare Wires
(Three Hot & Ground)
Fan & Impeller
Impeller Type: Backward Inclined
Impeller Diameter: 16.19"
Noise Levels
77.0 dB at 20 feet
80.8 dB at 5 feet
Filtration System
Filter Media: Carbon yarn knitted into
fabric to protect against static
buildup
Air Permeability: 23–35 CFM per sq. ft.
(±5 CFM)
Total Filtration Area: 347 sq. ft.
Construction & Finish
Assembly: Laser-cut, bolted
construction
