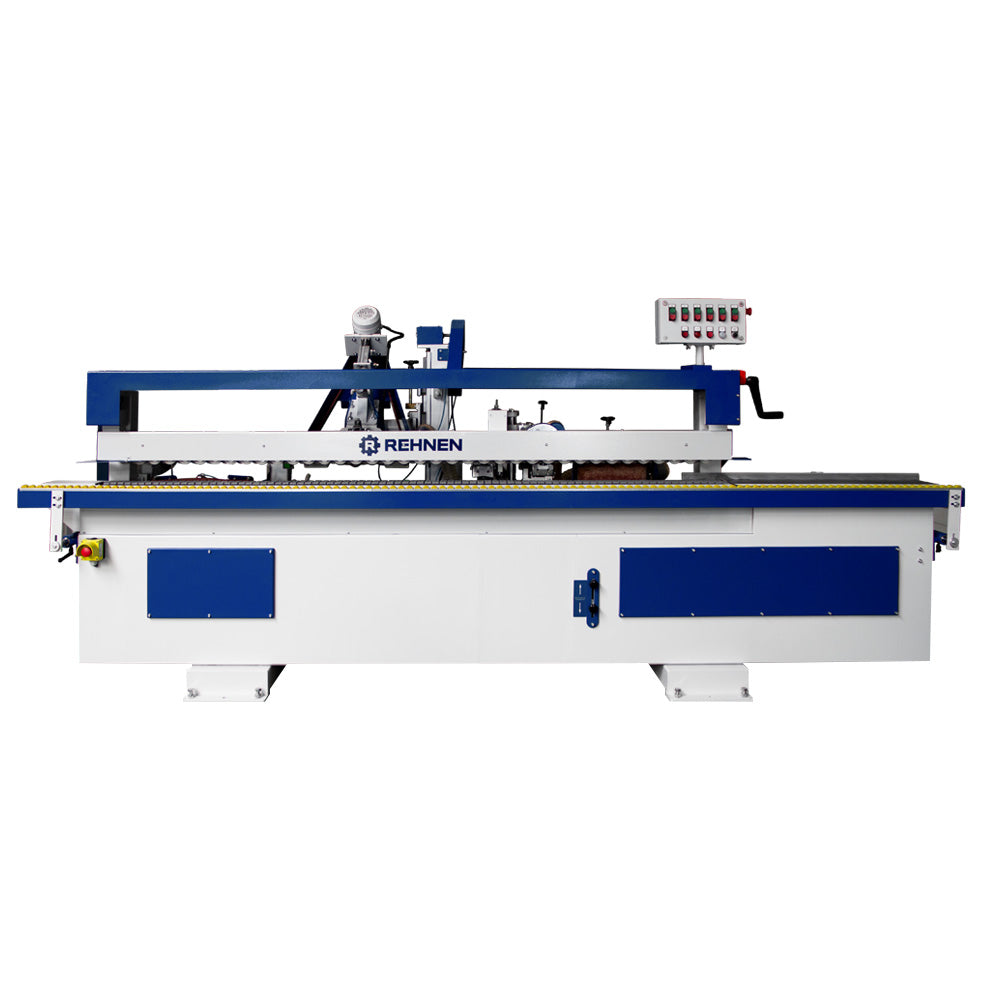

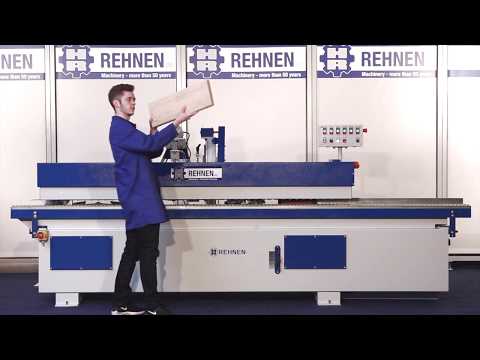

Rehnen KBA Profile and Edge Sanding Machine
Rehnen KBA Profile and Edge Sanding Machine is backordered and will ship as soon as it is back in stock.
The Rehnen KBA Profile and Edge Sanding Machine makes the working on edges from solid wood, MDF or other sheet material more easy and efficient for you. It is modular build and can therefor be equipped with the milling-, profile sanding-, edge sanding, and brushing aggregates you need.
Edge Sanding Unit
• Oscillated sanding with the grooved turning wheel and the sanding shoe
• The whole sanding aggregate oscillates from 30-130mm
• 3kW (4HP) strong motor
Milling Unit
• Cutting chamfers or radii from the top and bottom with 12.000 rpm
• Frequency controlled
• Milling aggregates are sensing
Profile Sanding Unit
• Profile sanding of chamfers and radii with a sanding shoe and belt
• The sanding shoe is air cooled and operates pneumatically
Power Feed
The power feed unit runs with a rubber coated chain and an upper pressure bar equipped with rubber rollers. The workpiece will drive along the processing units. The upper milling and sanding aggregates goes up while you adjust the thickness of your material.
| Power | 6kW | 8HP |
| Belt Size (edge) | 150 x 2000mm | 5.9 x 78.74" |
| Belt Size (profile) | 30 x 1960mm | 1.18 x 77.17" |
| Dimensions | 1240 x 3600mm | 49 x 142" |
| Feeder Speed | 2-10 m/min./variable | 6.5 - 32.8 FPM |
| Workpiece Height | 10-60 mm or 20-90 mm (others on request) | 0.4 - 2.3" or 0.8 - 3.54" (others on request) |
| Min. Workpiece Length | 200mm | 7.8" |
| Weight | ca. 1600kg | ~3500lbs |
| Dust Collection Diameter | 1 x 160mm | 1 x 6.3" |
