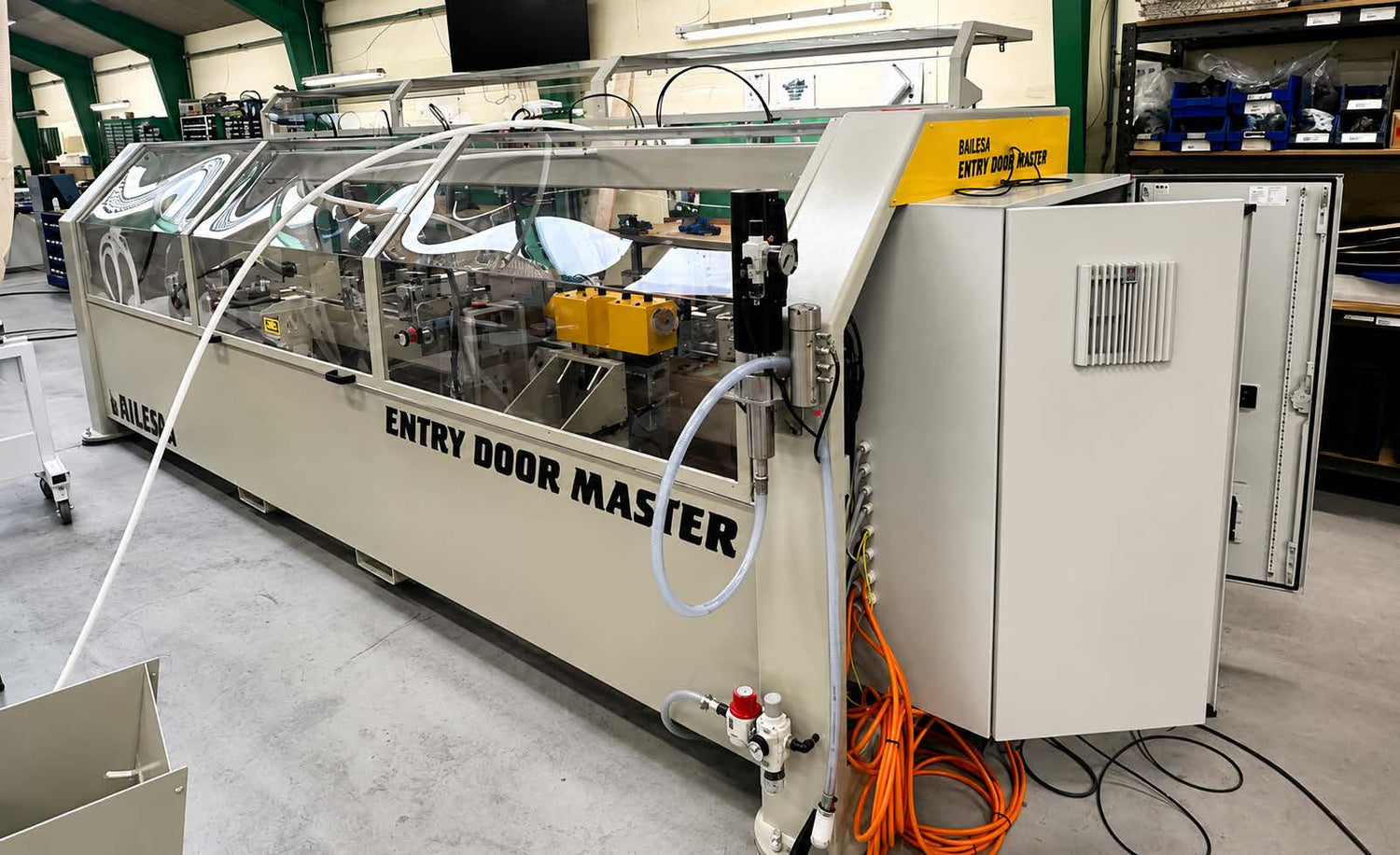

Rilesa Entry Door Master

Rilesa Entry Door Master

Designed specifically for the simplified processing of Entry Door Components, this machine performs the following functions:

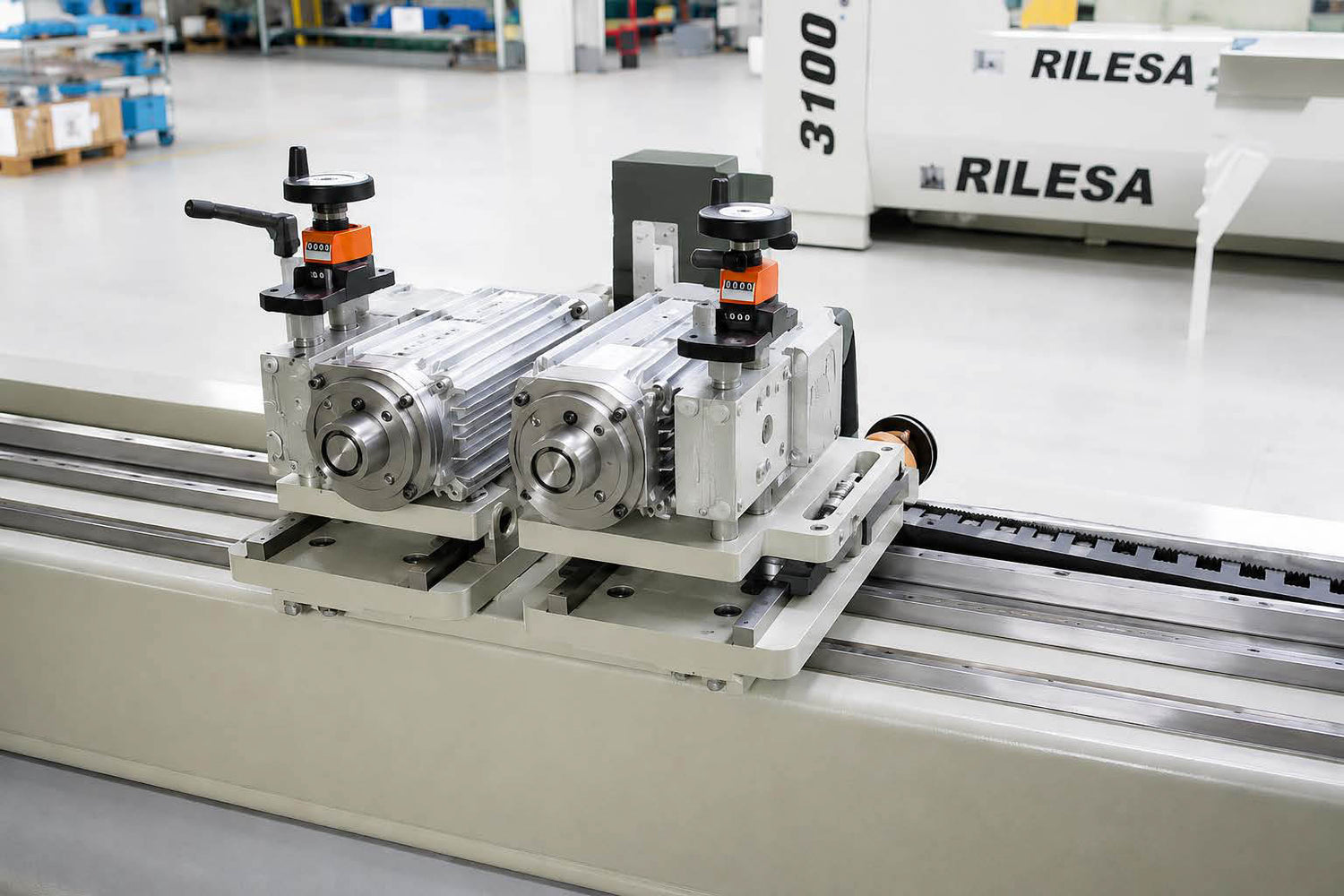

• Drilling

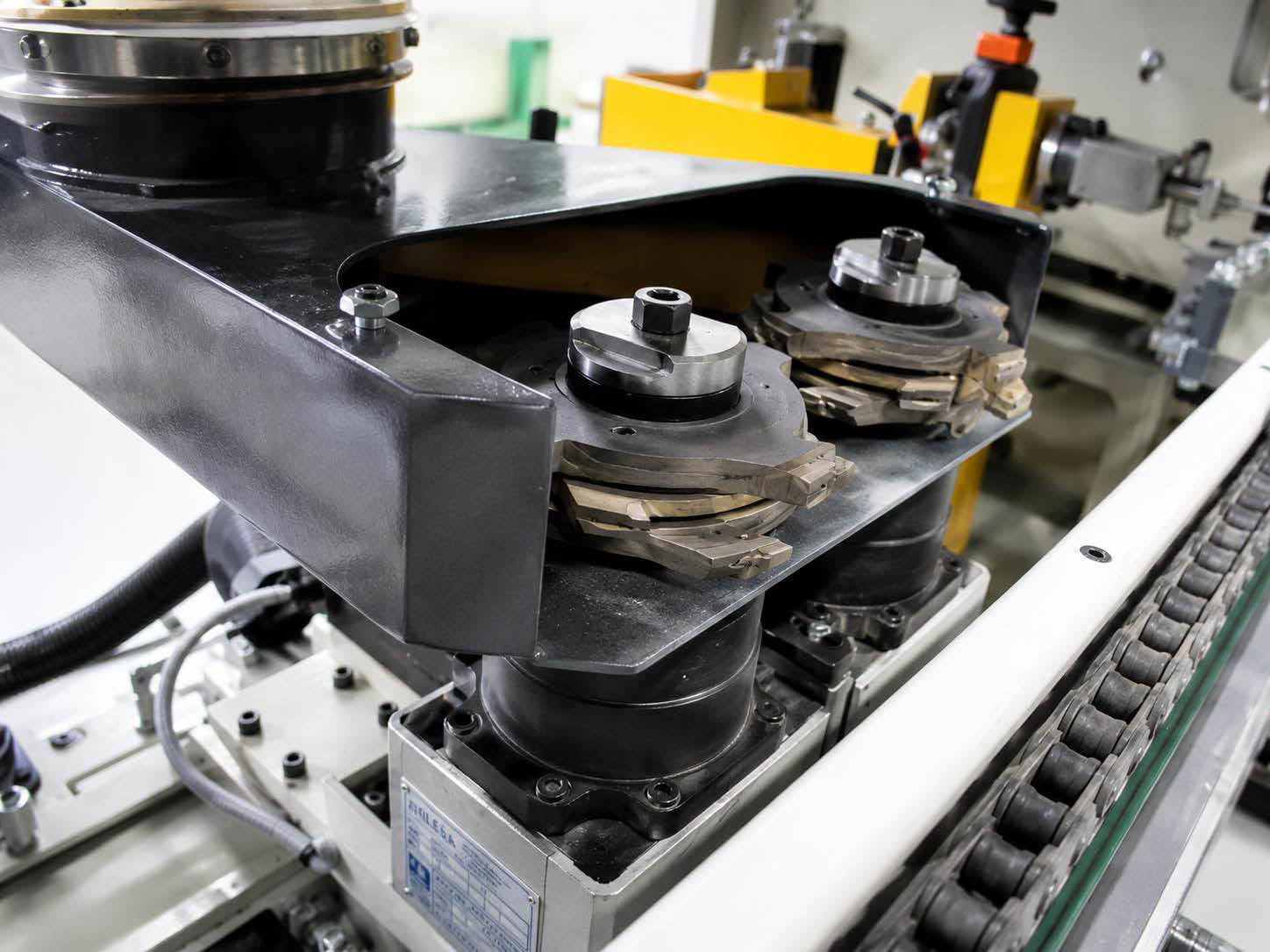

• Coping
• Glue Insertion

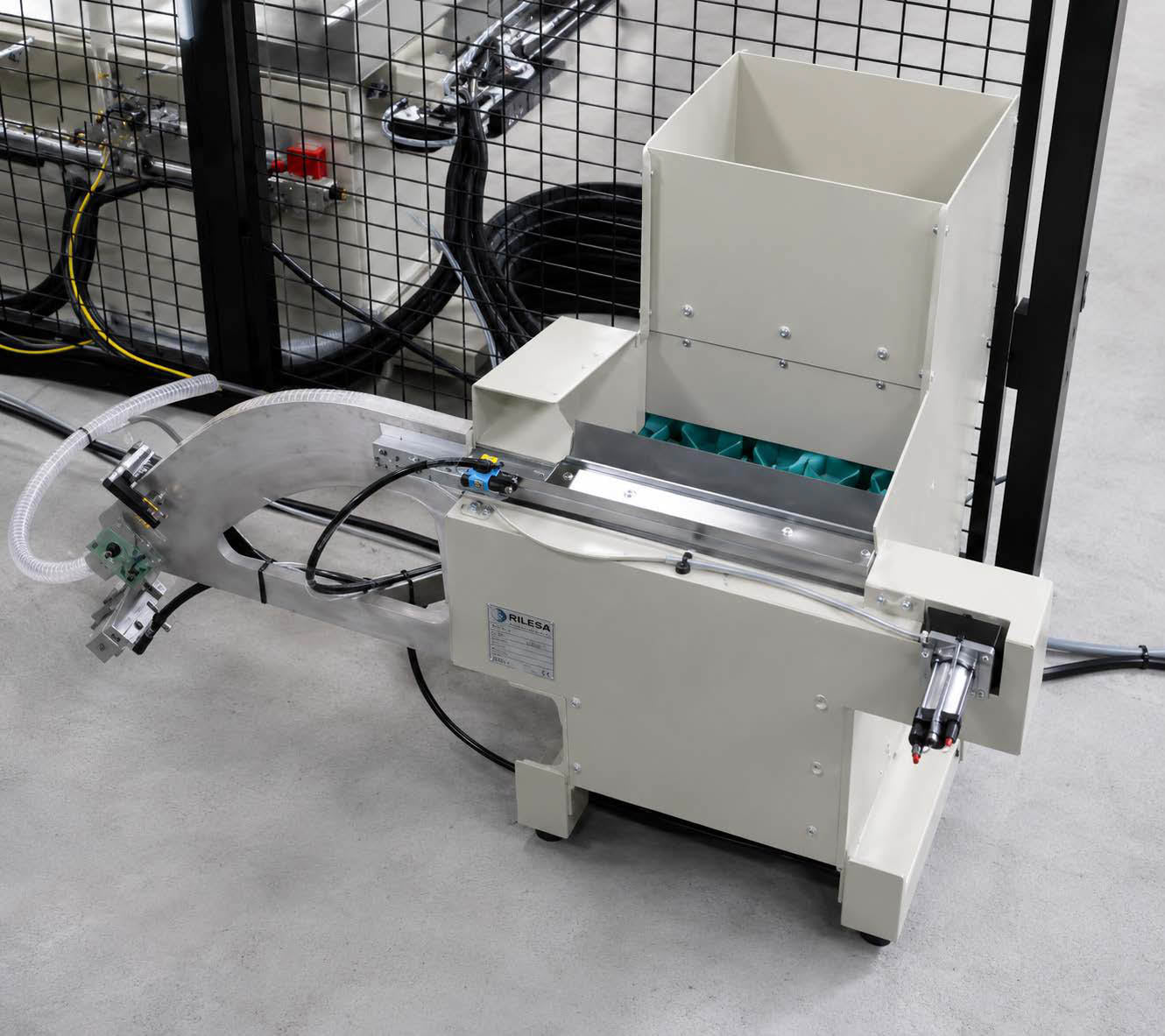

• Dowel Insertion

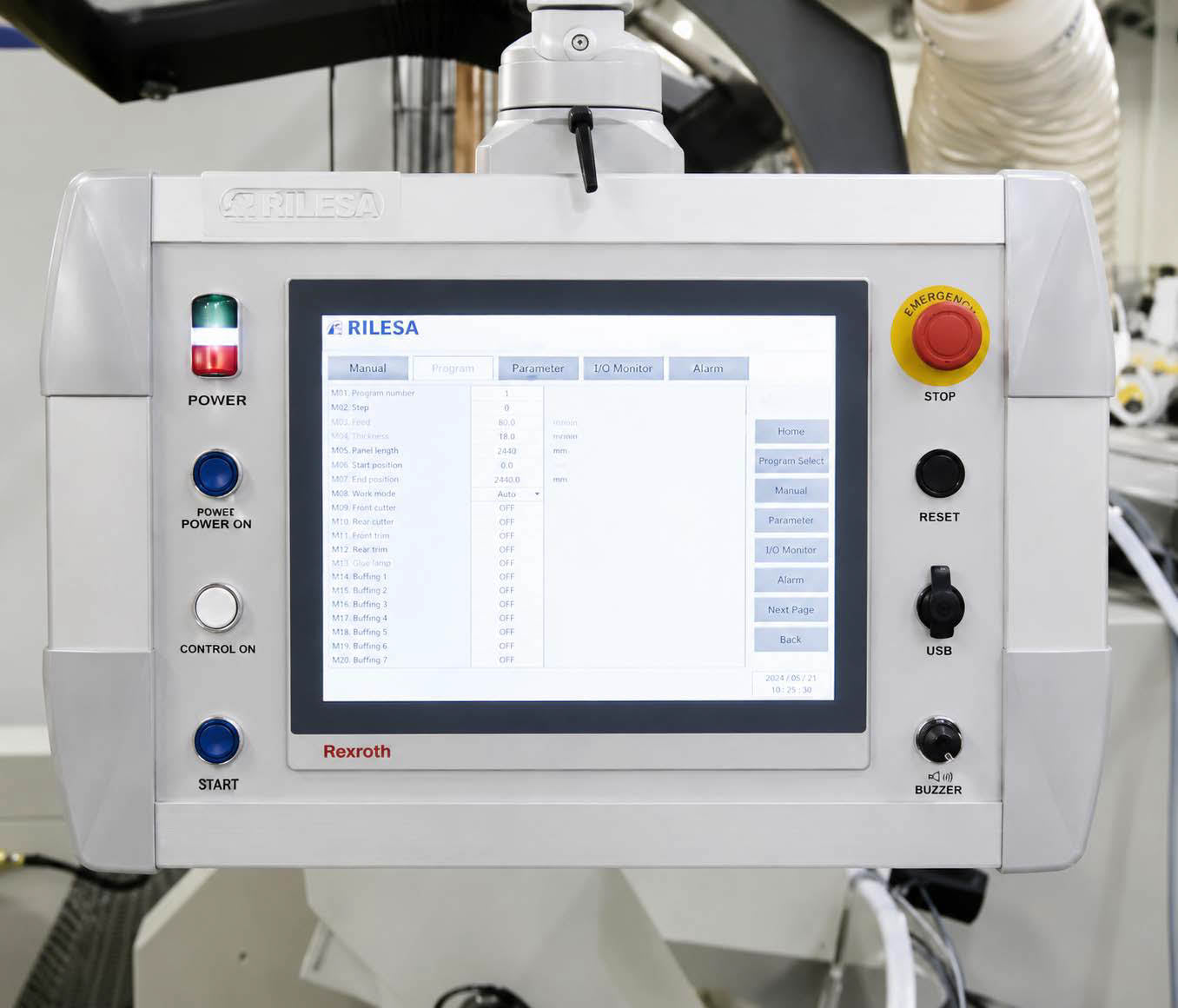

No CAD/CAM programming needed. Simplified entry for part parameters.

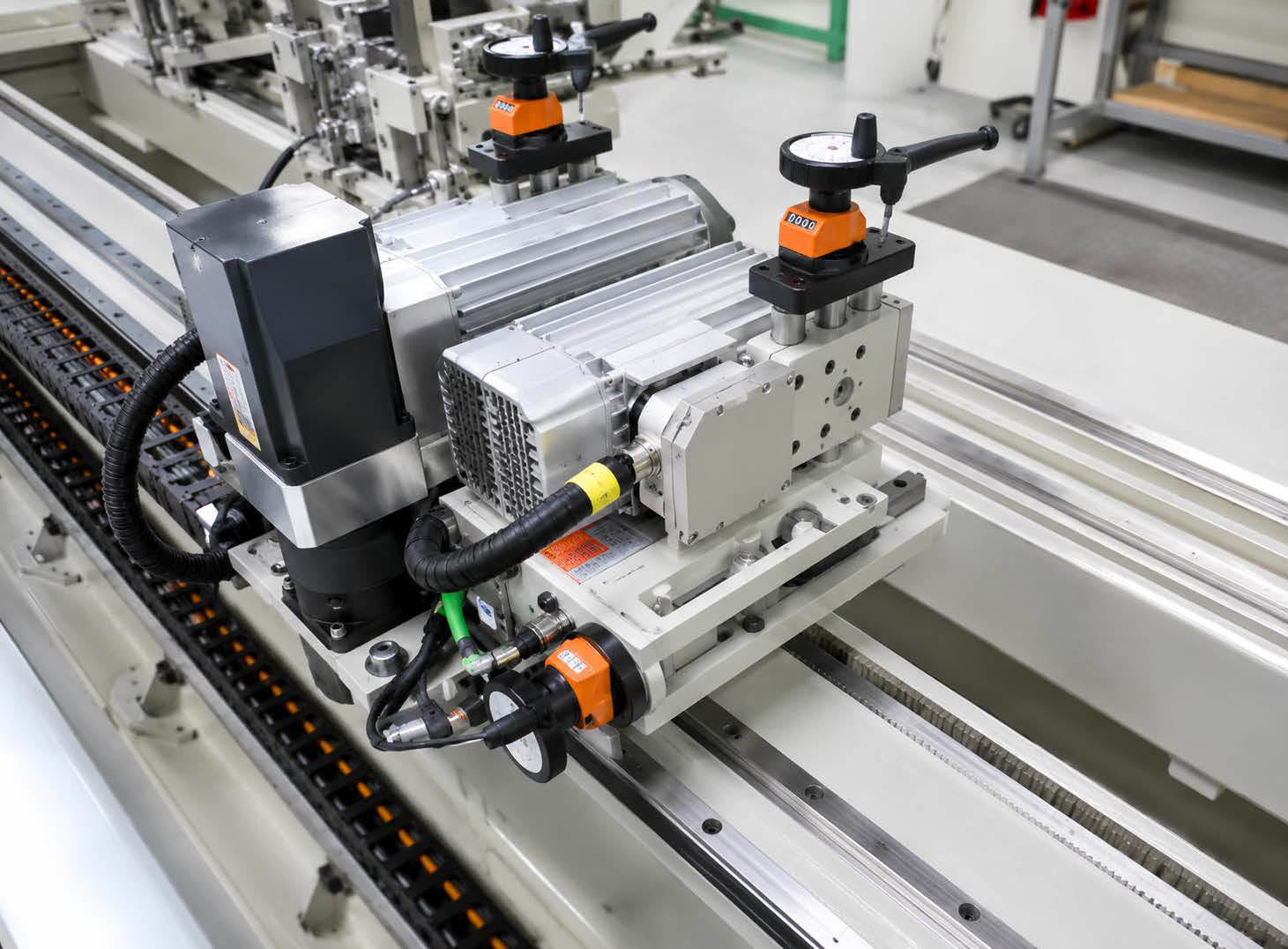

Rail Zone: Drill, Cope, Glue and Dowel Insertion for both right and left hand parts.

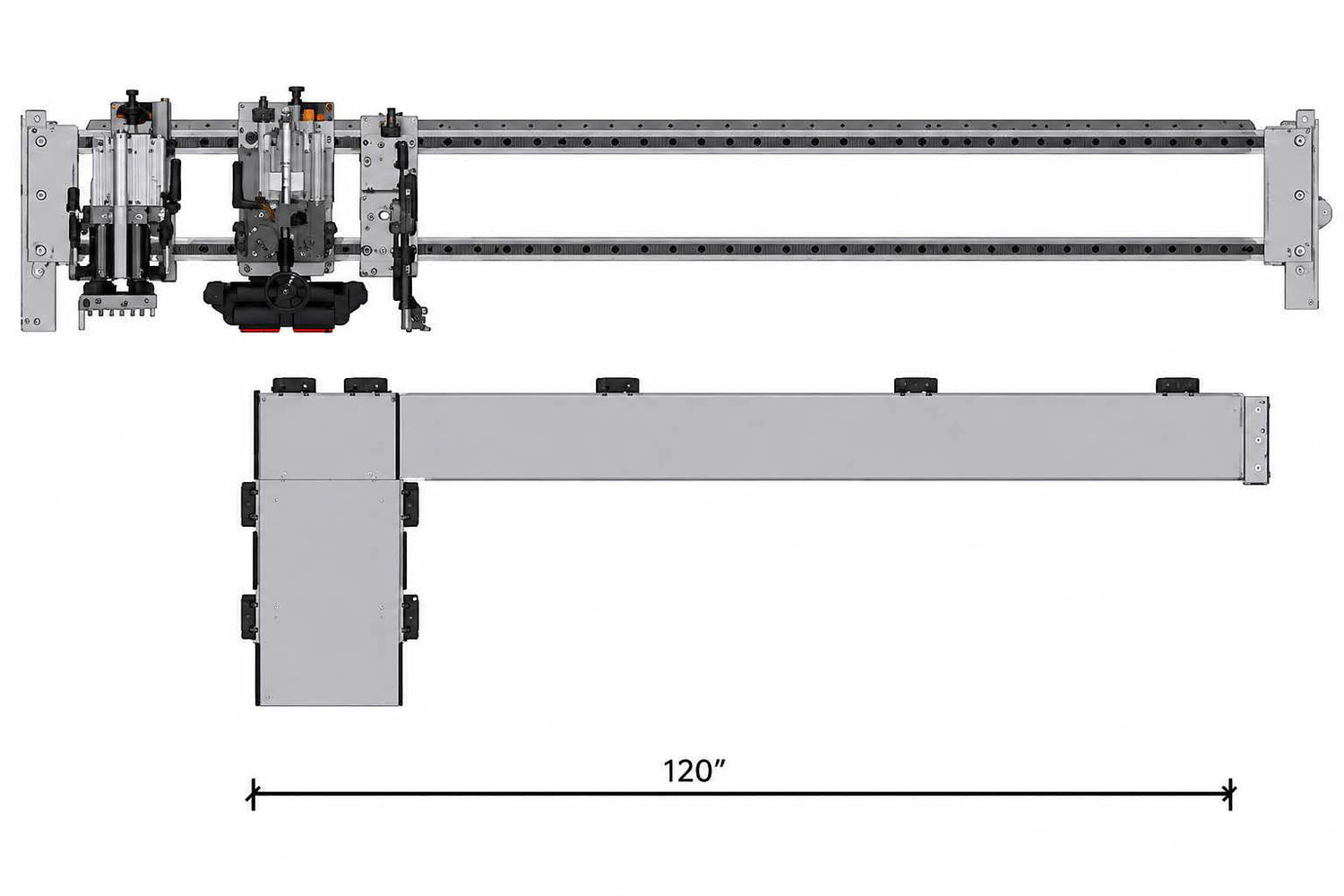

Stile Zone: up to 120" long rails, drilling only typically.

Technical Specs:

Thickness: 1" - 2 ¼"

Width: 2" - 7 ½"

Length: 7 ½" - 120"

3 Phase 400V 50HZ
