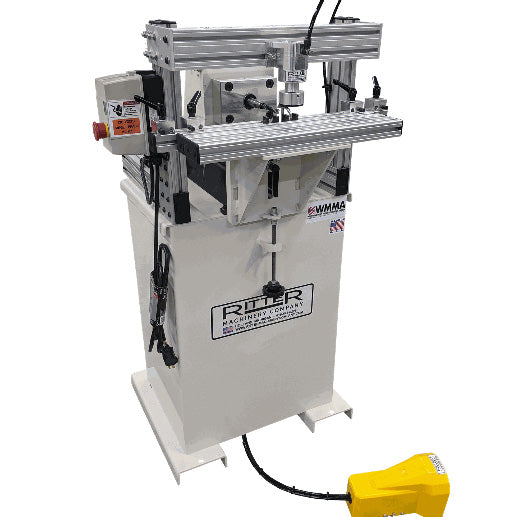

Ritter R130 Single Spindle Horizontal Boring Machine
Ritter R130 Single Spindle Horizontal Boring Machine is backordered and will ship as soon as it is back in stock.
Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut.
Standard Features:
Single spindle head
7/16-14 Female Threaded Collet
0.75 HP Spindle Drive Motor, TEFC
0-2" Adjustable Boring Depth
(4) Material Positioning Stops
2" Bore Clamping Cylinder
Foot Actuated Boring Cycle
3450 RPM Spindle Speed
6" X 20" Table Area
Tooling Not Included
Technical Data and Specifications:
Electrical: 110/120V, 60Hz, 10A
Air: 2 CFM at 80 – 100 PSI
Work Height: 40"
Footprint: 24" x 24"
Shipping Weight: 381 LBS
Shipping Dimensions: 38" X 38" X 55"
Highland Article #: R130
Ritter R130 Single Spindle Horizontal Boring Machine
