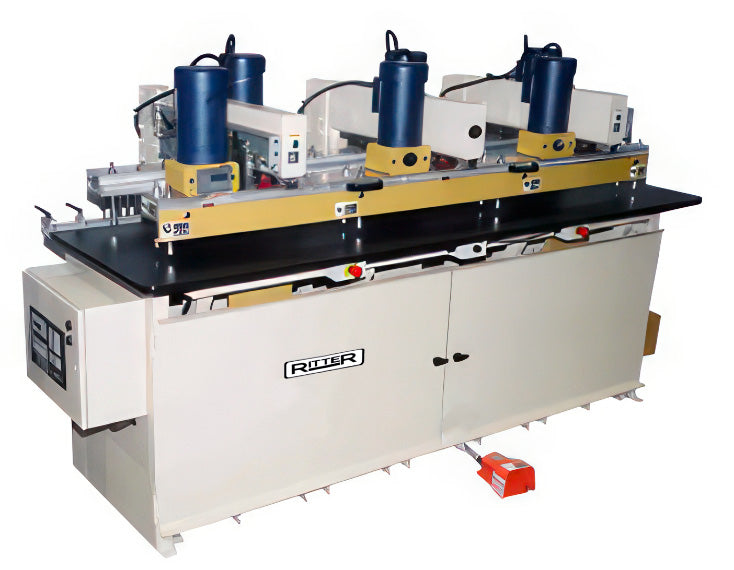

Ritter R152 152 Spindle Single Row System Drill

The Ritter R152 Line drill is a woodworking machine that can drill rows of evenly spaced holes in cabinet and furniture components. The R152 drills two rows of shelf pin holes simultaneously. It has 152 spindles arranged in two rows of 76 each, and it can drill a full 8 foot panel with precision and speed. It is designed for closet panel production and features servo driven and programmable through boring, twin ball screw boring stroke control, and right and left hand work stations.

Standard Features:

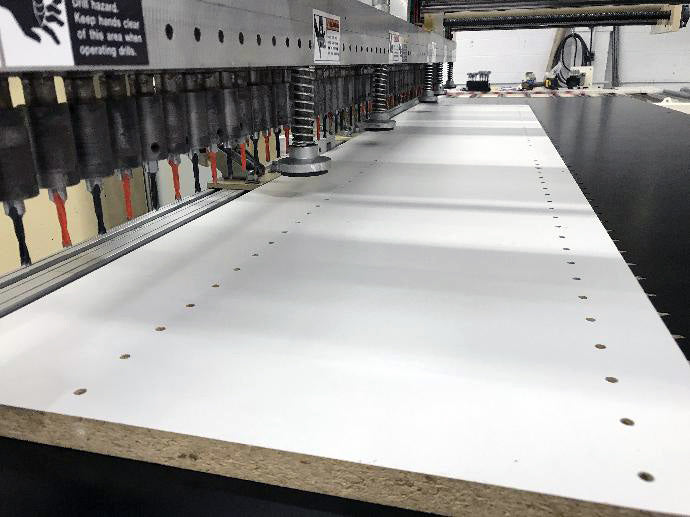

(2) 76 Spindle Gear Driven Heads
(6) 3 HP Spindle Drive Motors, TEFC
32mm Spindle Centers
10mm Bored Collets
(76) Right Hand, (76) Left Hand
CNC Table Feed Control
Electronic Drill Head Squaring
Foot Actuated Boring Cycle
Minimum hole spacing: 5" (127mm)
Magnetic Controls
Tooling Not Included


Technical Data and Specifications:
Drive Motors: 3 HP
Spindle Centers: 32mm
Collet Size: 10mm
Throat Capacity: 24"
First to Last Spindle: 2,400mm (94.488")
Maximum Material Thickness: 1.25"
Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
Air: 2 CFM at 80 – 100 PSI
Work height: 36"
Footprint: 54" x 136"
Table Area: 30" x 108"
Shipping Weight: 4,432 LBS
Shipping Dimensions: 120" L x 63" W x 83" H
