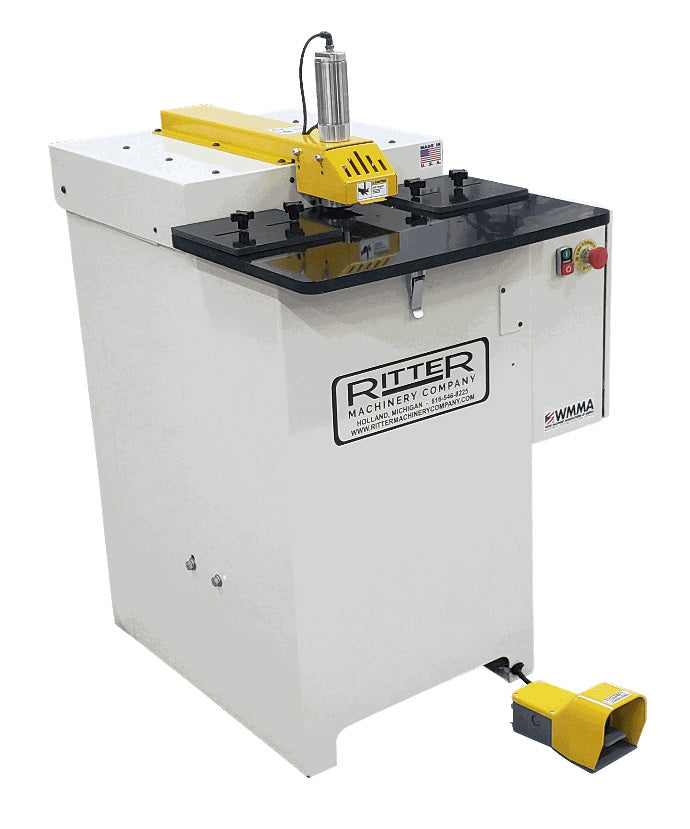

Ritter R2063 6° Low Angle Pocket Cutter
Ritter R2063 6° Low Angle Pocket Cutter is backordered and will ship as soon as it is back in stock.

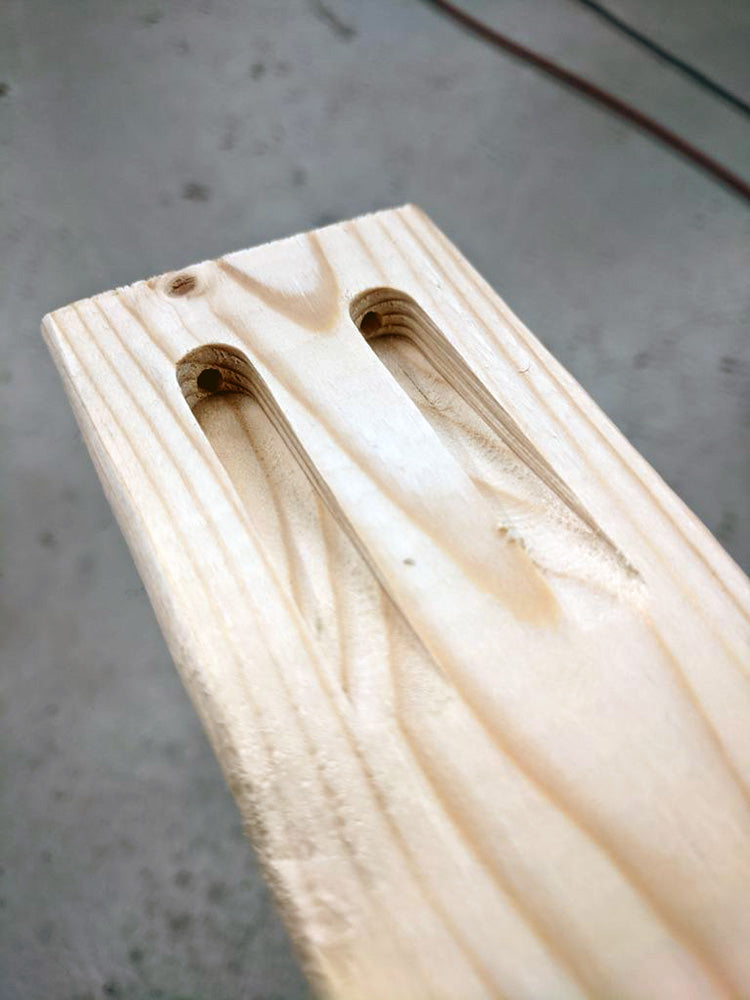

The R2063 is one of Ritter's pocket hole machines and is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.
Standard Features:
6° Low angle
PLC controlled cycle
Foot pedal operated
Adjustable Material Stops
Up to 2″ thick material
Cycle Time: 1.75 – 2 Sec
Tooling Included
Technical Data and Specifications:
Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,000 RPM, 8 A, 2 HP
Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
Electrical: 230V, 3Ø, 10A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port: 4″
Additional options:
48″ Wide Table
R2063 - 1-Phase 230 Volt
R2061 – 1-Phase 110 Volt
Shipping Weight: 300 LBS
Shipping Dimensions: 38″ x 25″
