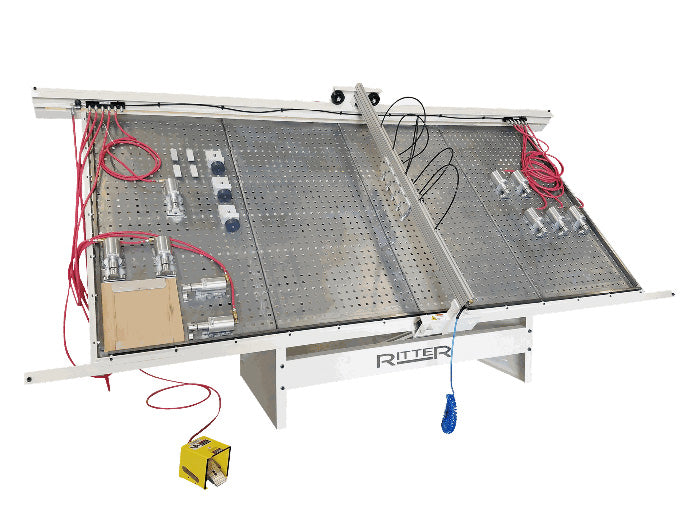

Ritter R250EA Frame Master Combination Face Frame and Door Clamping Easel

Frame assembly system for doweled, mortise and tenon, or screwed together frames and cabinet doors. Screwed together face frame construction provides for the most efficient and economical methods for joining frames. Flush and tight joint construction is provided for all types of wood. Elimination of dowel boring and insertion, clamping time and joint misalignment provide up 50% time reduction in frame production. The ability to disassemble and reposition a joint creates less loss of material in case of errors in the joint location. No glue required.

Standard Features:
6'x12' Assembly Table
45° Vertical Easel
Hold Down Beam with (5) Adjustable Hold Down Cylinders
1-5/16" Clearance Under Vertical Cylinders
Squaring Bars on Left, Right and Bottom Sides
(10) Universal Clamping Cylinders & Manifold
706.8 LBS of force at 100 PSI
(4) Material Hold Down Dogs
(3) Adjustable Material Positioning Stops
2" Cylinder Position Grid Pattern
3" Bore Clamp Cylinder Housing
Heavy Duty Steel Frame
Perforated Steel Table
Open Back Design
6 port Manifold with ¼" NPT Regulator/Gage
Adjustable pressure from 20 to 130 PSI
Foot Treadle
(1) Coilhose for Pneumatic Screw Gun
Screw Gun Not Included

Technical Data and Specifications:
Usable Table Area: 72" x 138"
Work Height: 25"
Footprint: 165" L x 66" D x 86" H
Electrical: N/A
Air: 100 PSI

Additional options:
R275A - Face Frame Assembly Clamp Arm
U300E05 - Additional AC-20 Universal Clamp Cylinder
U37515 - Additional Manifold Assembly
U300E16 - Additional Foot Treadle Assembly
Shipping Weight: 1770 LBS
Shipping Dimensions: 84" X 170" X 30" H
