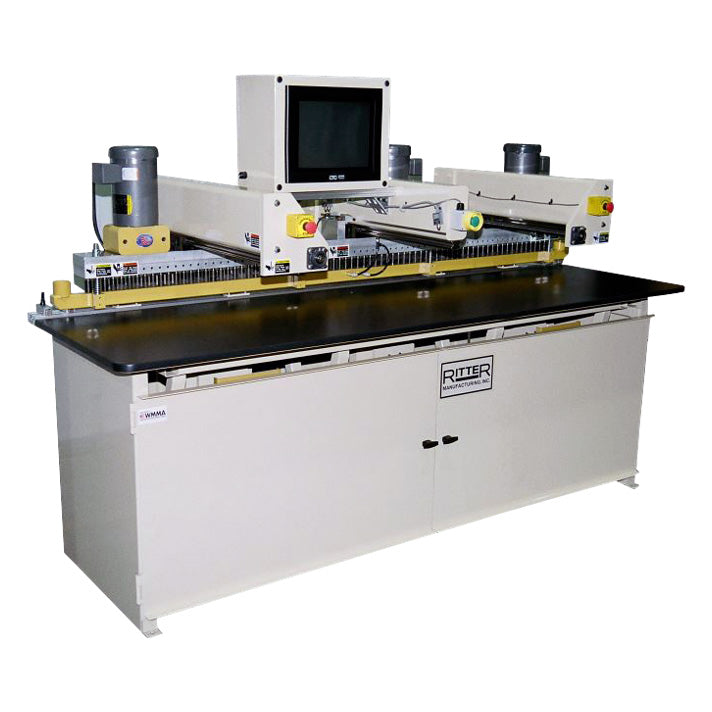

Ritter R76 76 Spindle CNC Single Row Drill System

The Ritter R76 a closet system drill part of the panel master series. The R76 is a CNC single row system drill with programmable drill row location and boring depth. The R76 is used for drilling full length closet panels in a single process. The drill row ball screws and linear rails provide for precision drill row location. The servo driven ball screw table feed control allows for precision drill depth control and through feed boring.

The multiple spindles and CNC control allow you to drill precise and consistent holes in a single process, significantly increasing your productivity.

Standard Features:

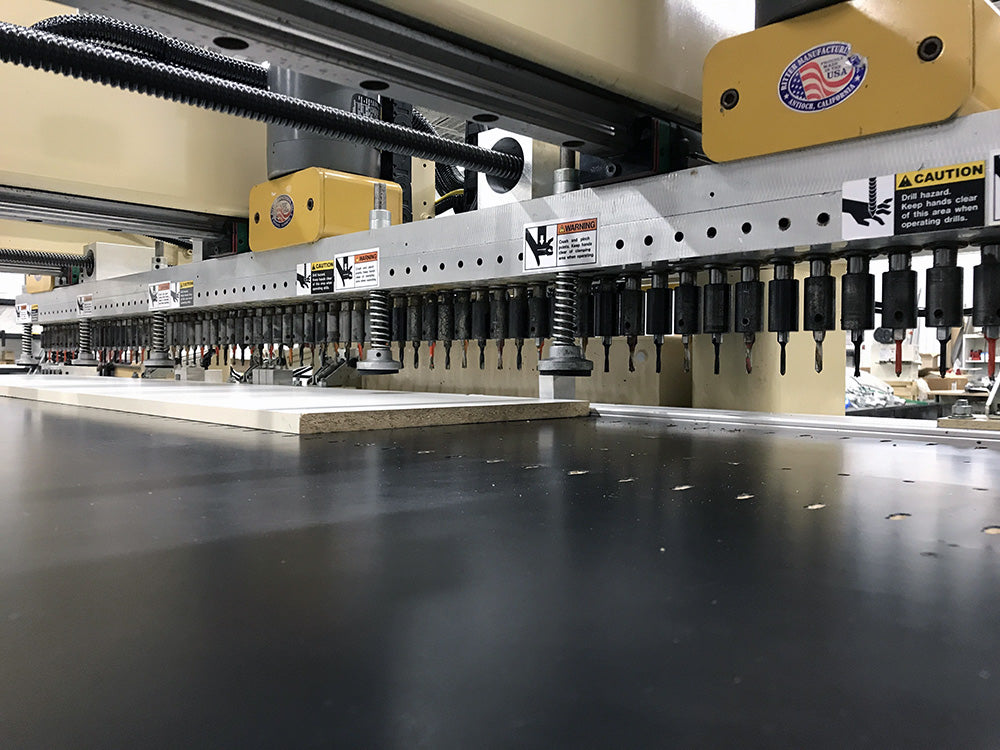

76-Spindle Gear Driven Drill Head
(39) Right Hand, (36) Left Hand
Touch Screen HMI
Twin Ball Screw Drill Row Positioning
Triple Precision Table Guide Rails
Twin Ball Screw Boring Stroke Control
Programmable Boring Depth, Servo Driven
108" Back Fence with (4) Adjustable Material Stops
Right and Left Hand Work Stations
(4) Pneumatic Material Clamps
(4) Spring Operated Material Clamps
Center Beam Mounted Cycle Start Button
(2) Emergency Stop Buttons
Tooling Not Included

Technical Data and Specifications:
Drive Motors: 3 HP
Spindle Centers: 32mm
Collet Size: 10mm
Throat Capacity: 24"
First to Last Spindle: 2,400mm (94.488")
Maximum Material Thickness: 1.25"
Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
Air: 2 CFM at 80 – 100 PSI
Work height: 36"
Footprint: 56" x 110"
Table Area: 30" x 108"
Shipping Weight: 4,432 LBS
Shipping Dimensions: 120" L x 63" W x 83" H
