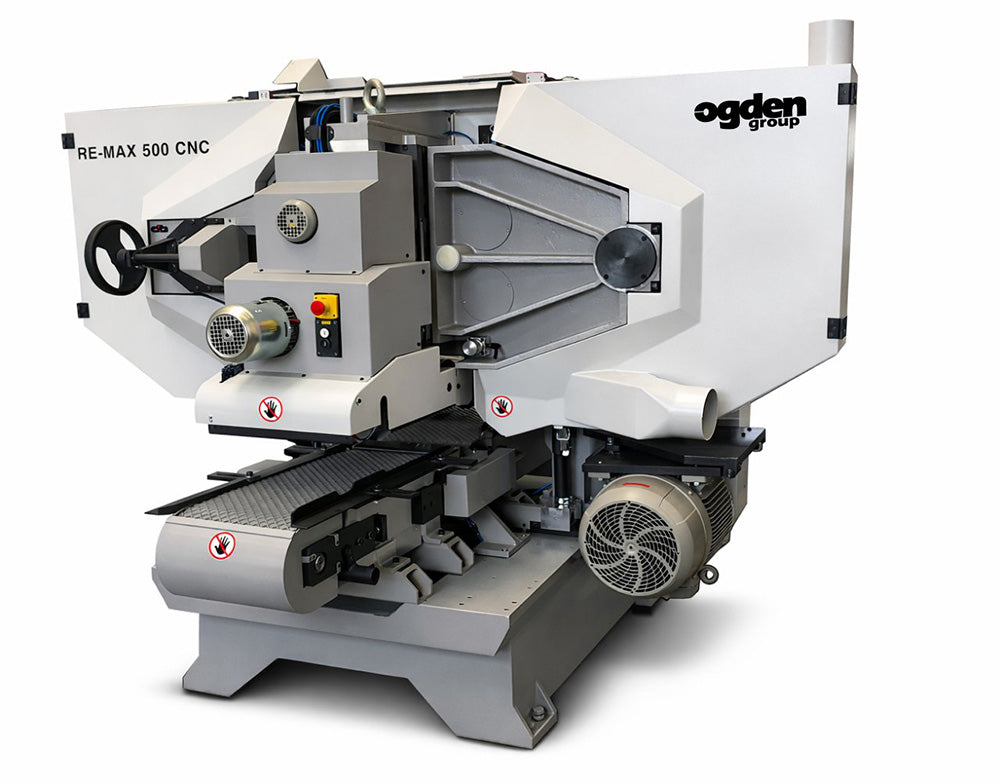

Thin Cutting Band Saw RE-MAX 500 CNC

The RE-MAX 500 CNC is a heavy-duty horizontal thin cutting band saw engineered for precision re-sawing across a wide range of applications — including flooring, windows, doors, furniture, and musical instruments.
Built from solid cast iron, the RE-MAX 500 CNC is designed to outlast and outperform conventional re-saws. A steel table at the cutting spot ensures the highest level of precision, while high-tension, thin-kerf blades minimize material waste and deliver a smooth, gluable surface finish with exceptional dimensional tolerances of ±0.15 mm. Bearings on both sides of the main wheel shafts further guarantee maximum cutting stability throughout every pass.
The machine handles material up to 500 mm wide and 150 mm thick, with a variable feed speed of up to 60 m/min. Both cutting speed and feed speed are fully adjustable, giving operators complete control over the process. The divided feed conveyor with top-driven infeed pressure unit ensures consistent, reliable material handling, while integrated saw monitoring keeps an eye on performance during operation.
Control is simple and intuitive thanks to the CNC touch-screen panel, allowing effortless height adjustment with precision and ease.
The RE-MAX 500 CNC's modular construction also gives your business the flexibility to scale — start with a single stand-alone unit and add more in-line units as your production demands grow.
Key Specifications & Features:

Heavy-duty solid cast iron construction for durability and superior tolerances

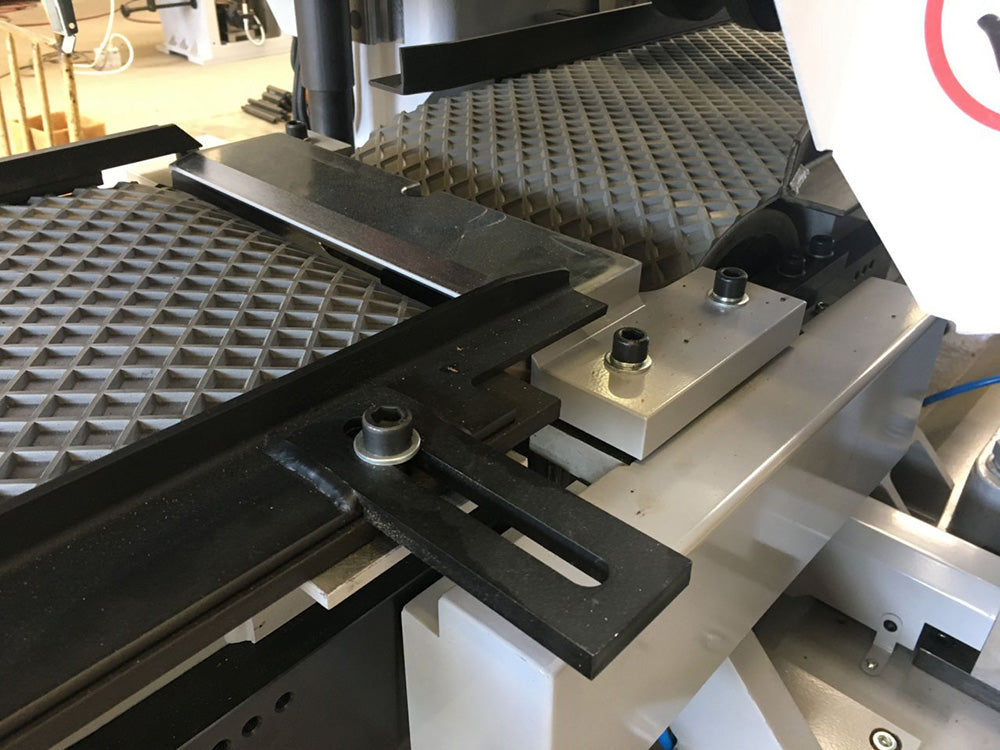

Steel table at cutting spot for maximum precision
Tolerance of ±0.15 mm for high-precision, gluable lamella surfaces
Thin-kerf, high-tension blades to minimize waste
Handles material up to 500 mm wide and 150 mm thick
Variable feed speed up to 60 m/min
Adjustable cutting and feed speeds

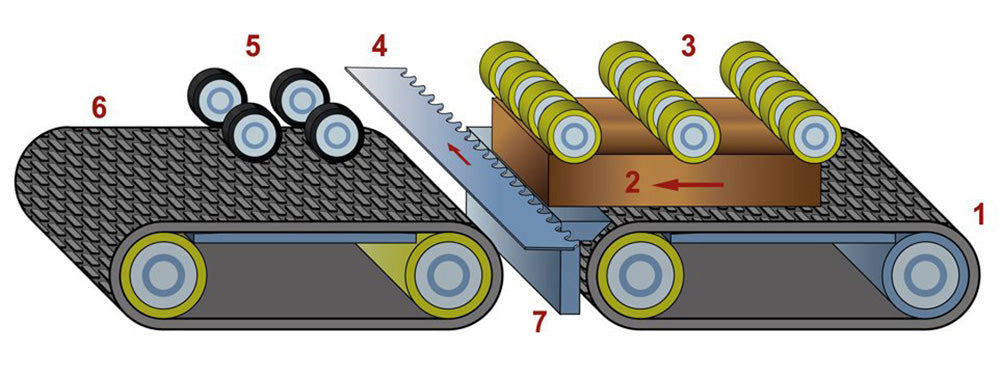

Divided feed conveyor with top-driven infeed pressure unit

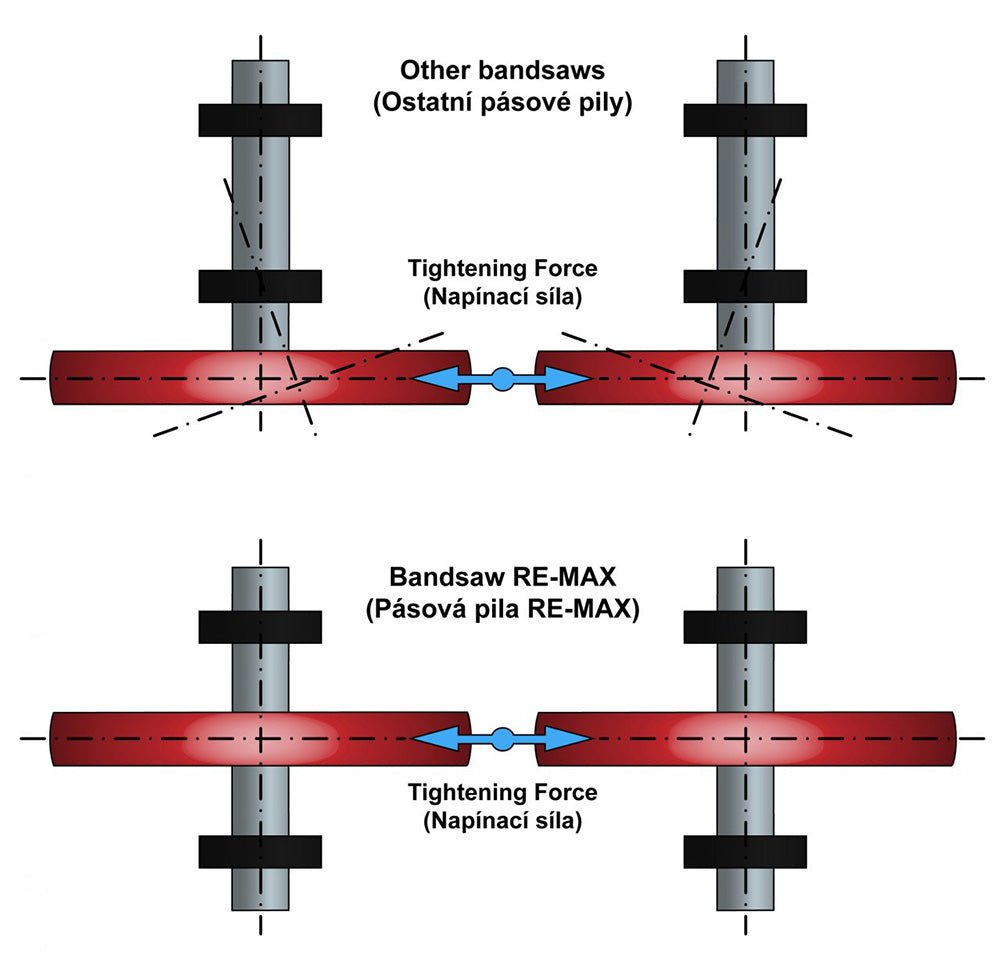

Bearings on both sides of main wheel shafts for cutting stability
CNC touch-screen control panel for easy height adjustment

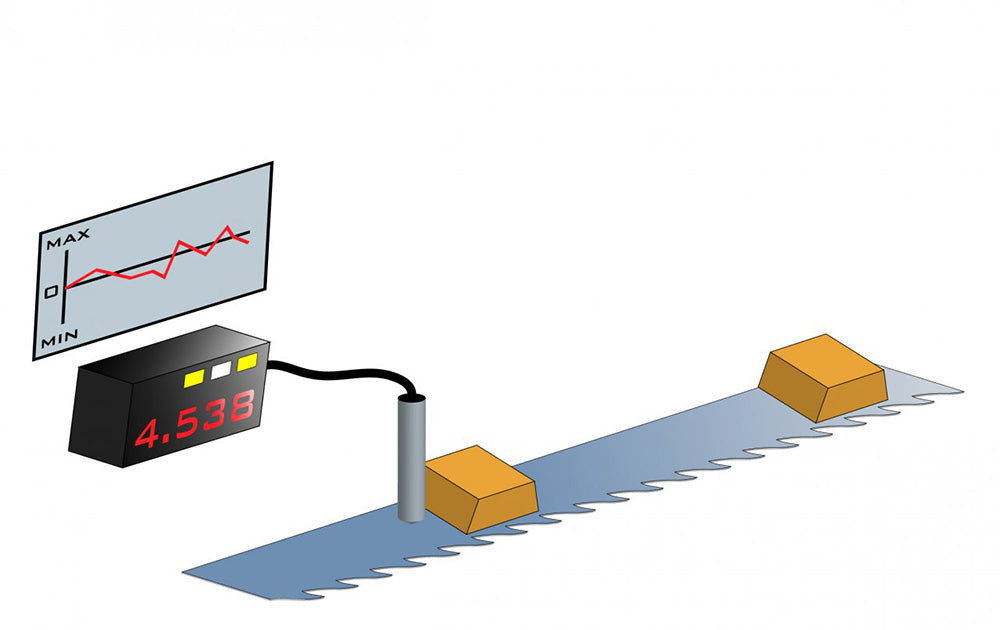

Integrated saw monitoring during operation
Modular design for in-line expansion as needs grow
