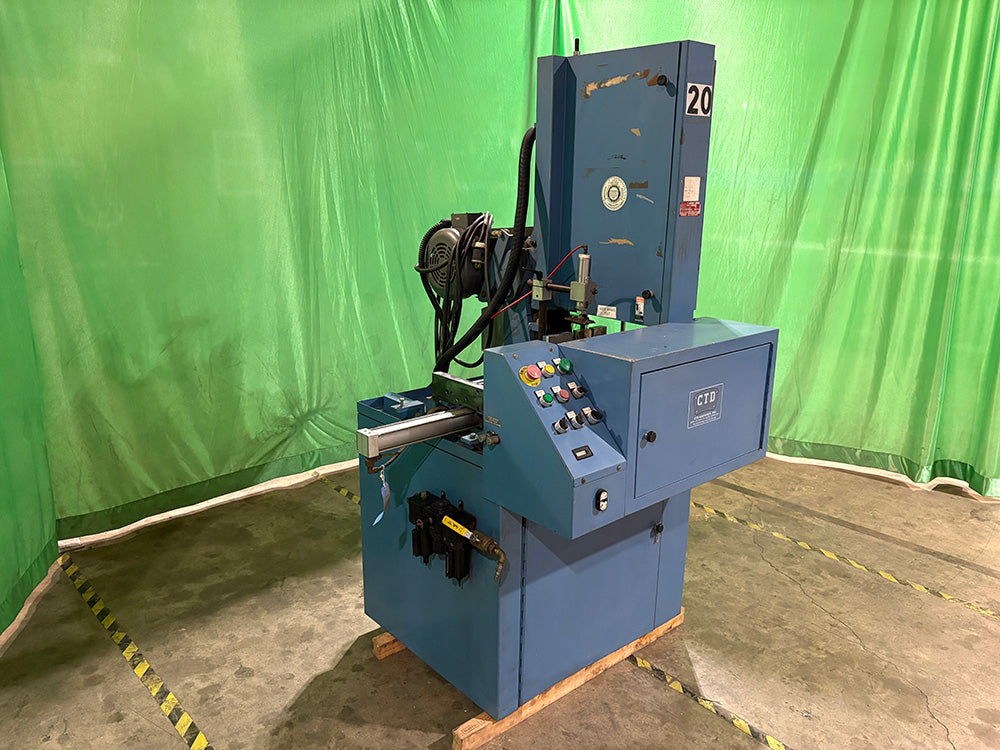

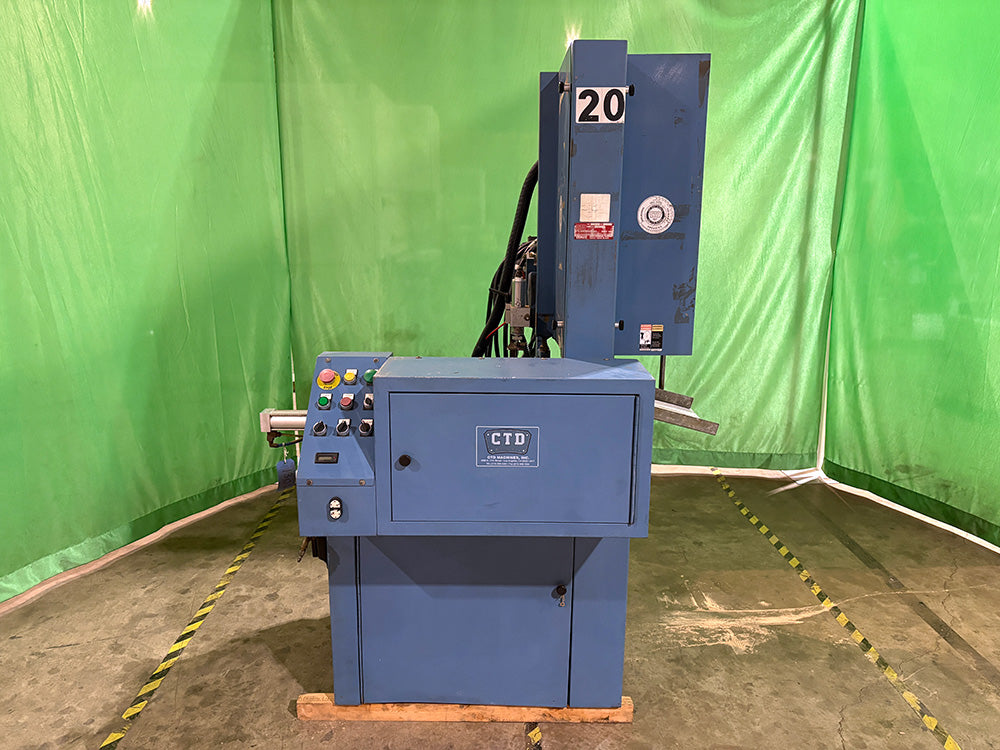

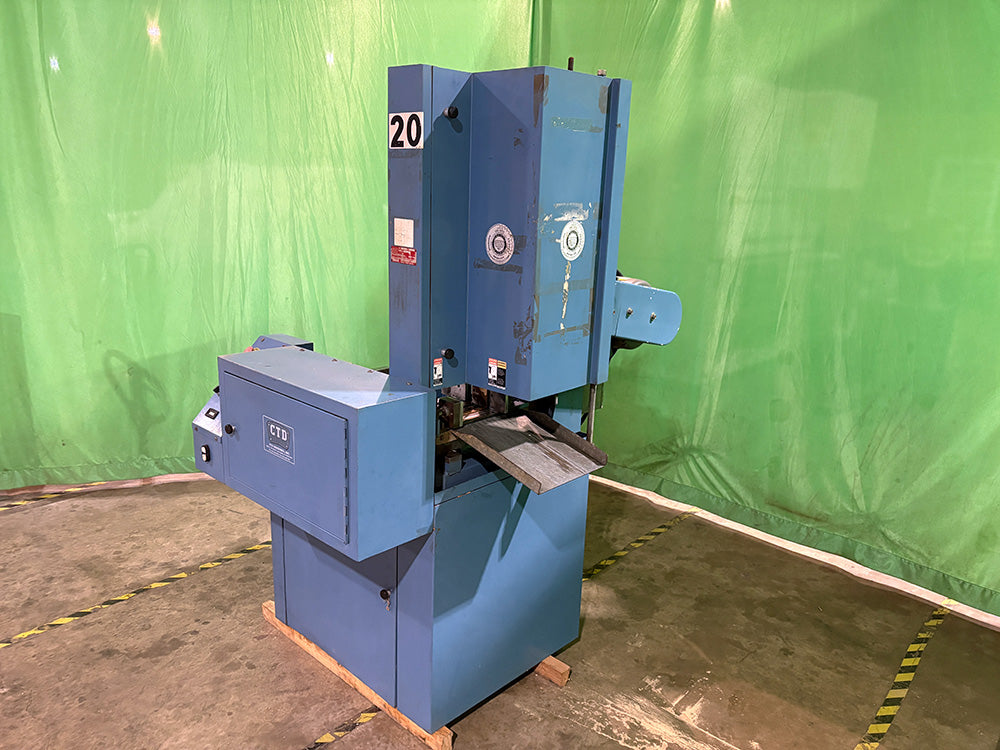

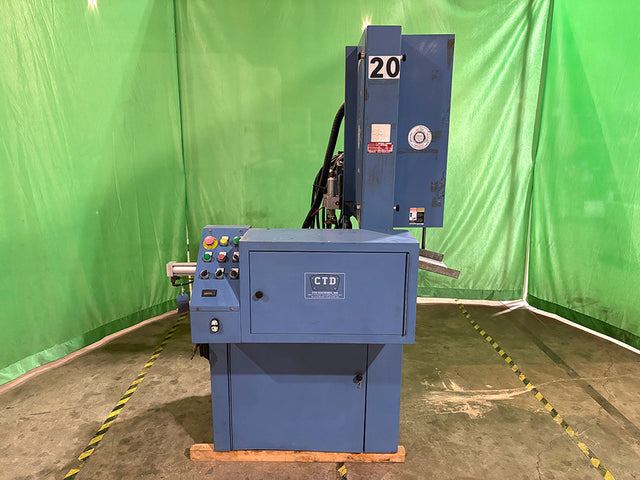

Used CTD "A480" Cut Off Saw
Used CTD "A480" Cut Off Saw is backordered and will ship as soon as it is back in stock.
Used CTD "A480" Cut Off Saw
19" blade
10 HP motor operating at 1,725 RPM
2,700 blade RPM
Overhead pneumatic clamps
Outfeed chute

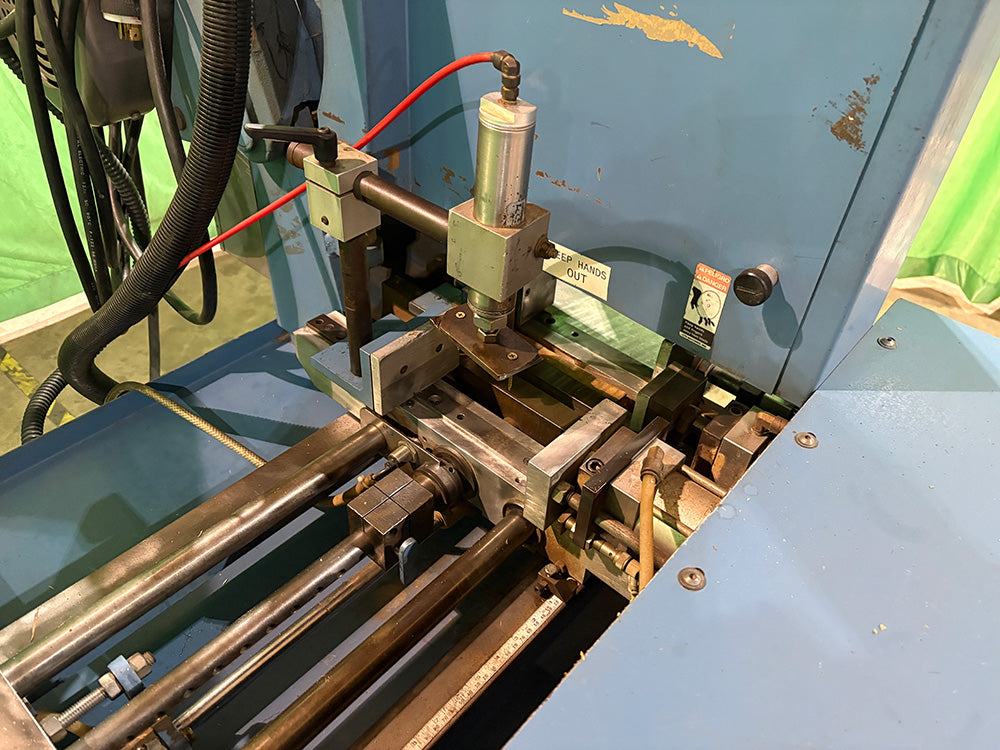

Material Feeding Mechanism: The feed vise mechanism has a built-in precision measuring device, including a precision measuring screw, allowing quick movements of 1/2'' increments, and adjustments of one thousandths of an inch; machine will feed up to 12'' on single stroke, 24'' on double stroke, or 36'' on triple stroke.
Vises: There are three vises on the A480; all vises are equipped with 3'' high removable vise inserts.

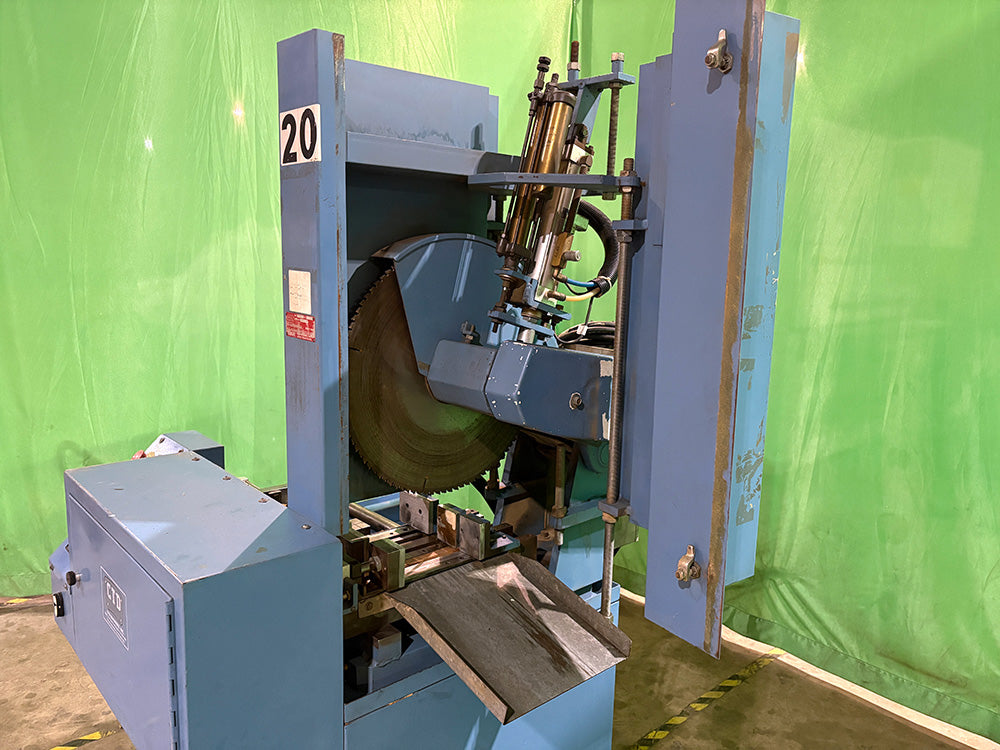

Air Hydraulic Power Downfeed of Saw Head: The saw head on the A480 is driven by a combination of air and hydraulic cylinders, allowing for very fine adjustment of the speed of the saw head.
2500lbs
55x55x72
