Used Hendrick HM3 Horizontal Automatic Panel/Beam Saw

Used Hendrick HM3 Horizontal Automatic Panel/Beam Saw

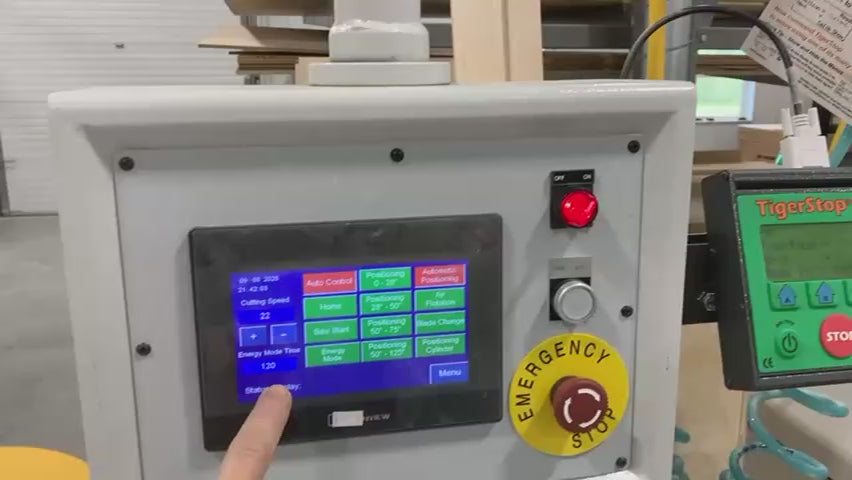

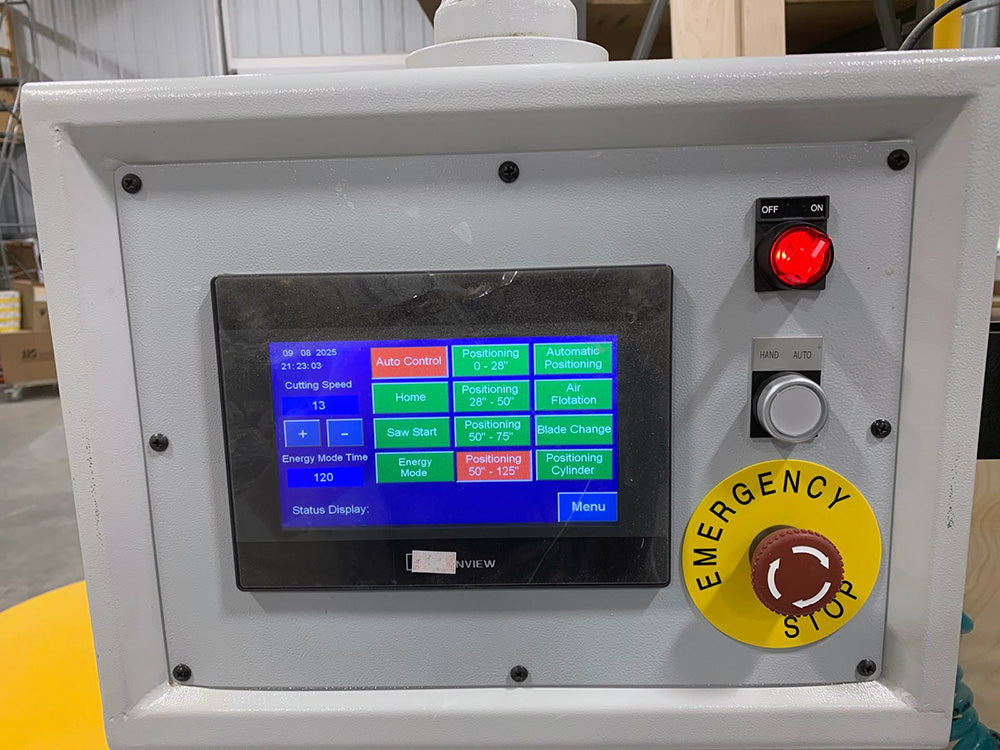

The Hendrick HM3 Horizontal Panel Saw delivers heavy-duty performance as a smarter, more cost-effective alternative to sliding table saws. Upgrade to a fully automatic machine that’s safer, more powerful, and incredibly easy to operate. Start cuts and adjust speeds instantly with simple push-button controls. Load and unload sheets effortlessly thanks to built-in air-flotation tables, while the full-length pneumatic pressure bar clamps stacked panels securely for clean, chip-free results every time. If you’re ready to boost speed, precision, and throughput in your shop, the HM3 is the professional-grade solution your production line has been waiting for.

Application(s): Configured for cutting solid or stacked wood sheet.
Power Requirements: 220V, 3 Phase, 60Hz, 60A
Length of cut: 126" +
Depth of Cut: 3" +
Main Saw Motor: Powerful 15 HP, 3 Phase, 4 Pole
Carriage feed motor: 1.5 kW AC Servo System driving linear rack & pinion gear system.
Main spindle speed: 4500 RPM
Scoring spindle speed: 6700 RPM
Max Feed Rate: 2,800"/min.
Max cutting speed: 1,800"/min.

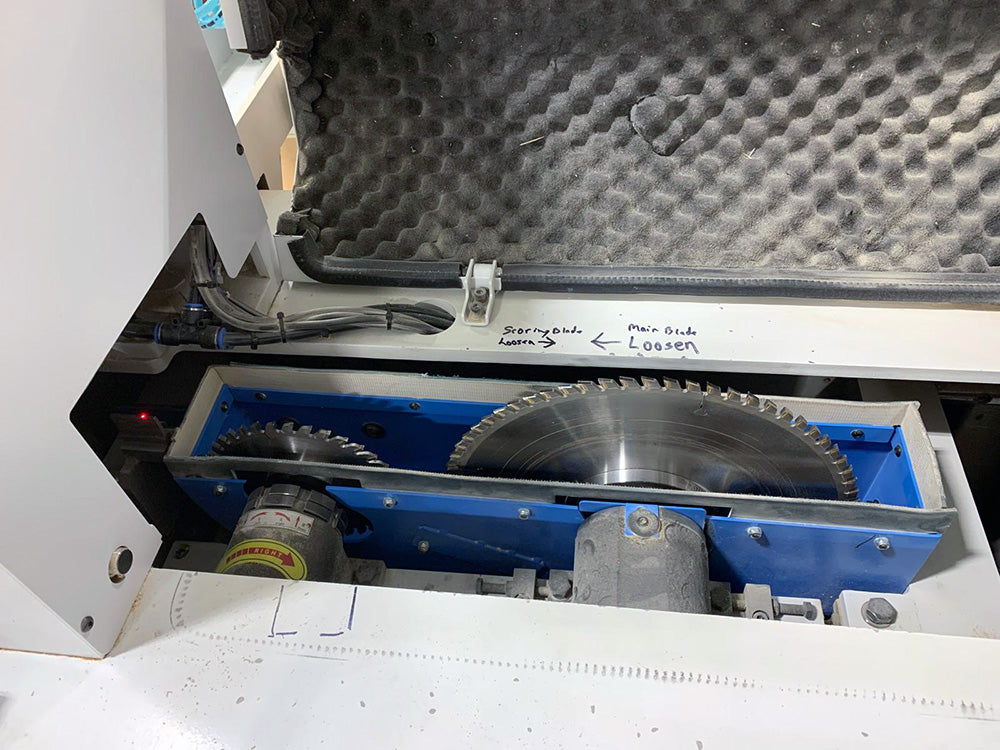

Main saw blade size: 14" Diameter x 75mm Bore
Scoring saw blade size: 7" Diameter x 30mm Bore
Material support Air tables

Includes upgraded transformer, and a Tigerstop fence.
