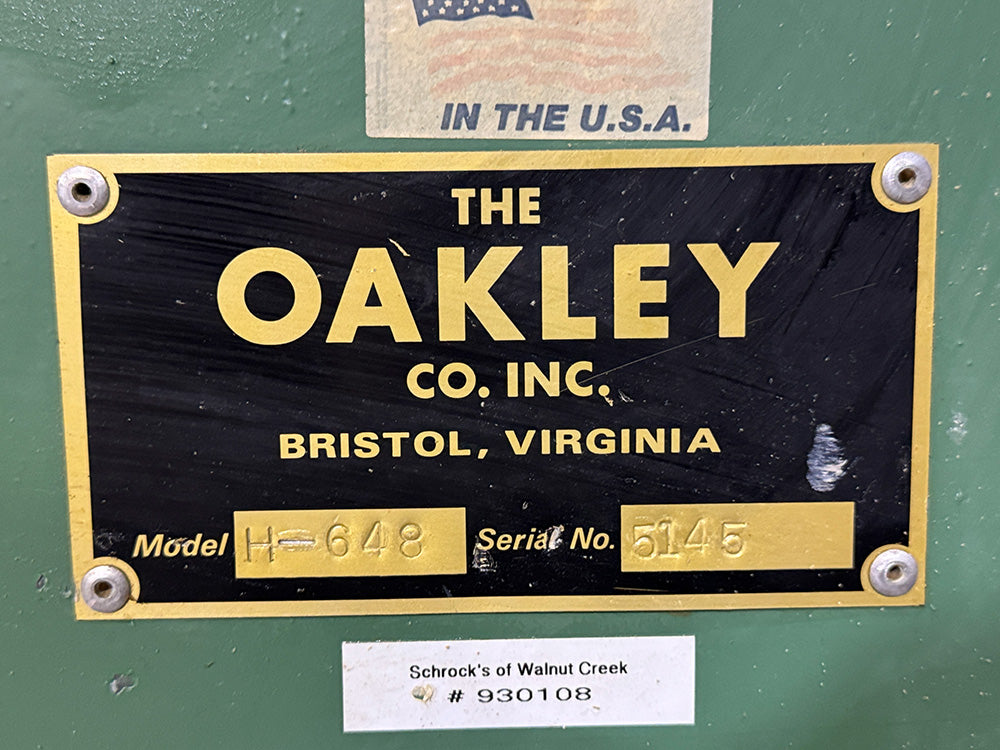

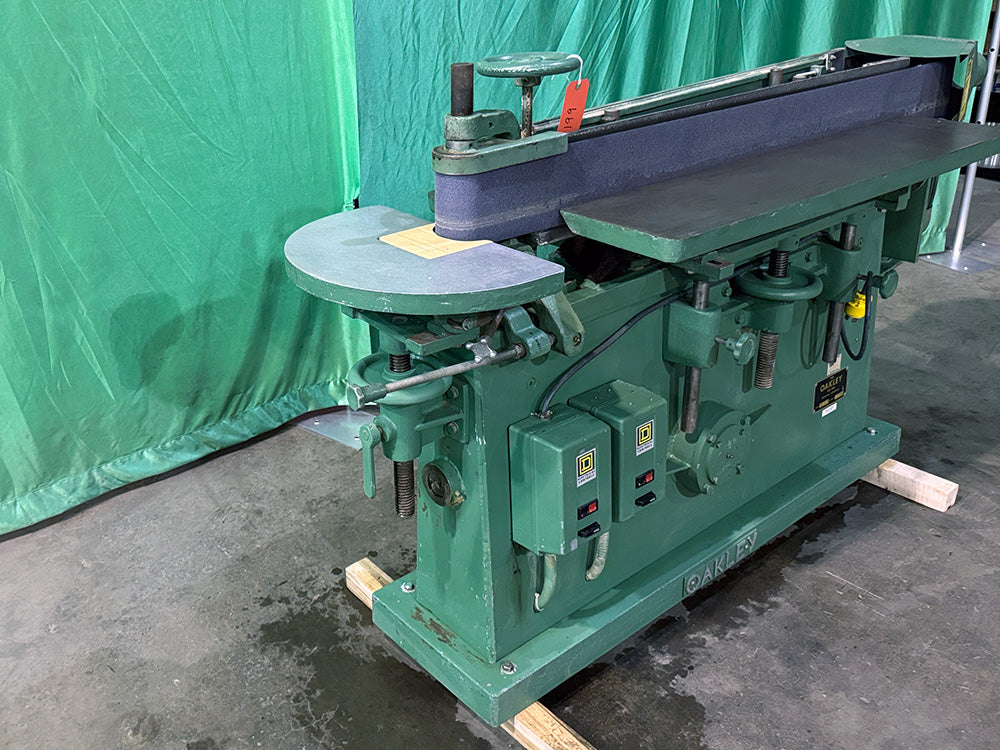

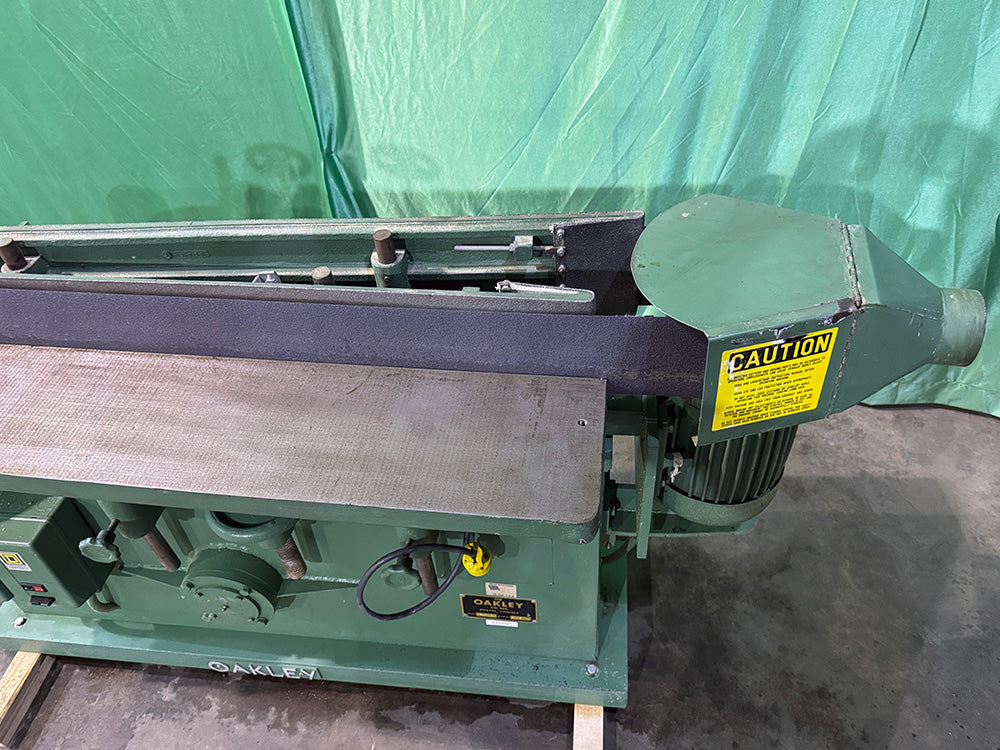

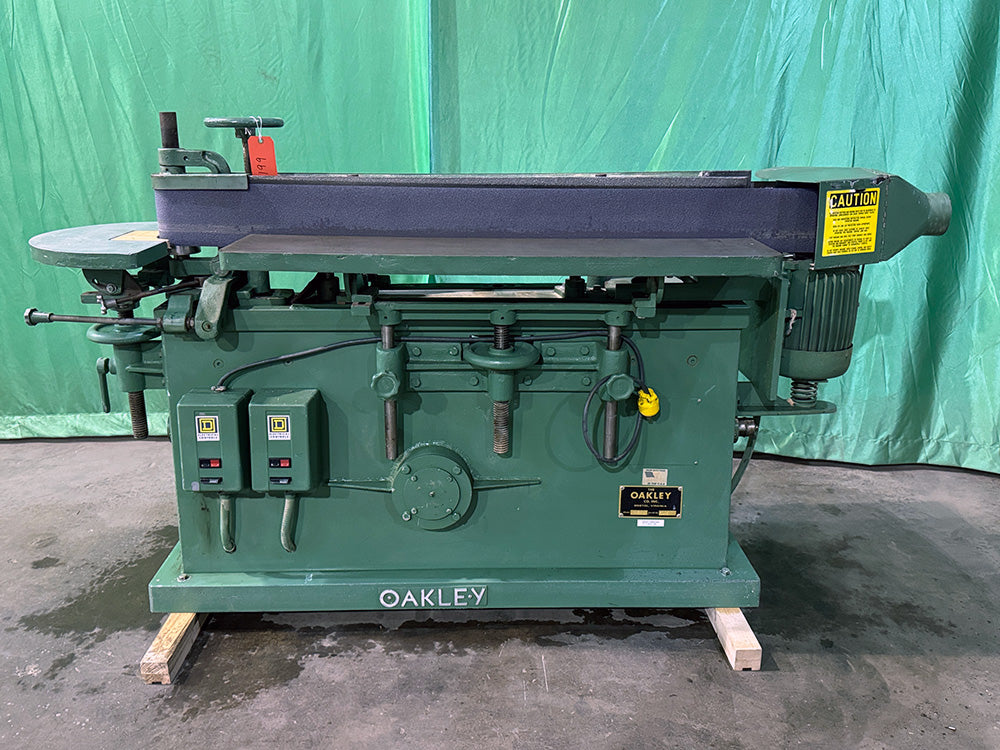

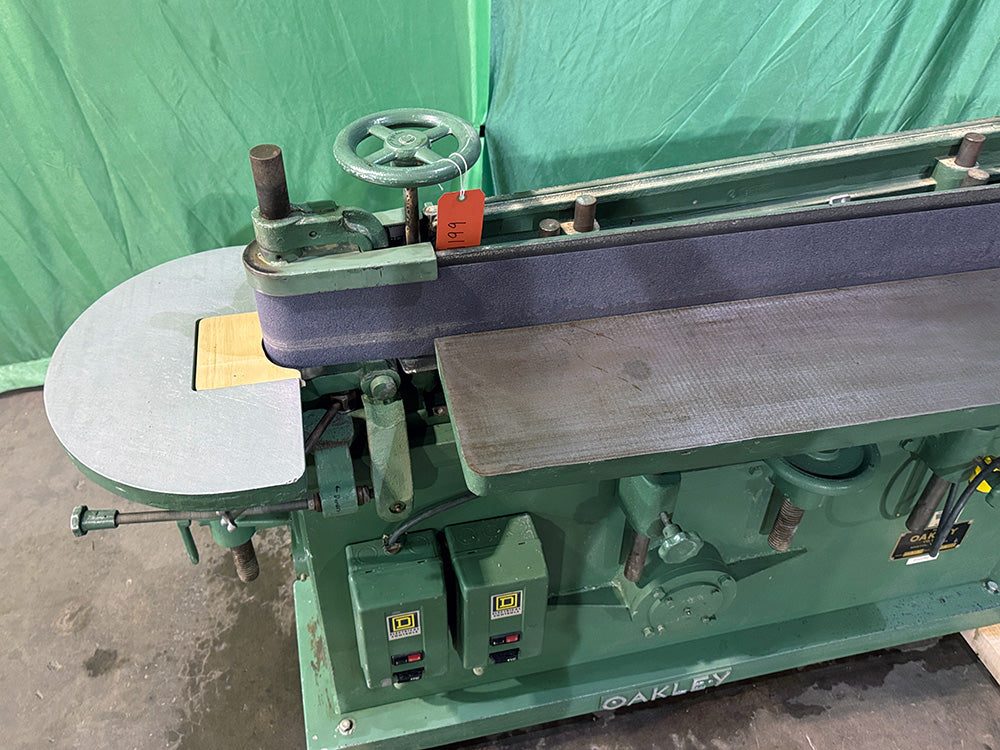

Used Oakley H-648 Edge Sander Serial 5145

Used Oakley H-648 Edge Sander Serial 5145

SPECIFICATIONS
230V / 5HP / 3Ph
Belt Width - 6" Standard
Belt Length - 145"
Belt Speed - 3900 FPM
Back Platen Length - 48"
Back Platen Width - 7"
Aluminum Drive Pulley Size - 8" dia. / 6.5" face
Aluminum Driven Pulley Size - 3.5" dia. / 6.5" face
Side Table Length - 48"
Side Table Width - 8"
Table Height - 37" min / 43" max
Side Tables Tilt - 45 degrees
End Table Tilts - 45 degrees

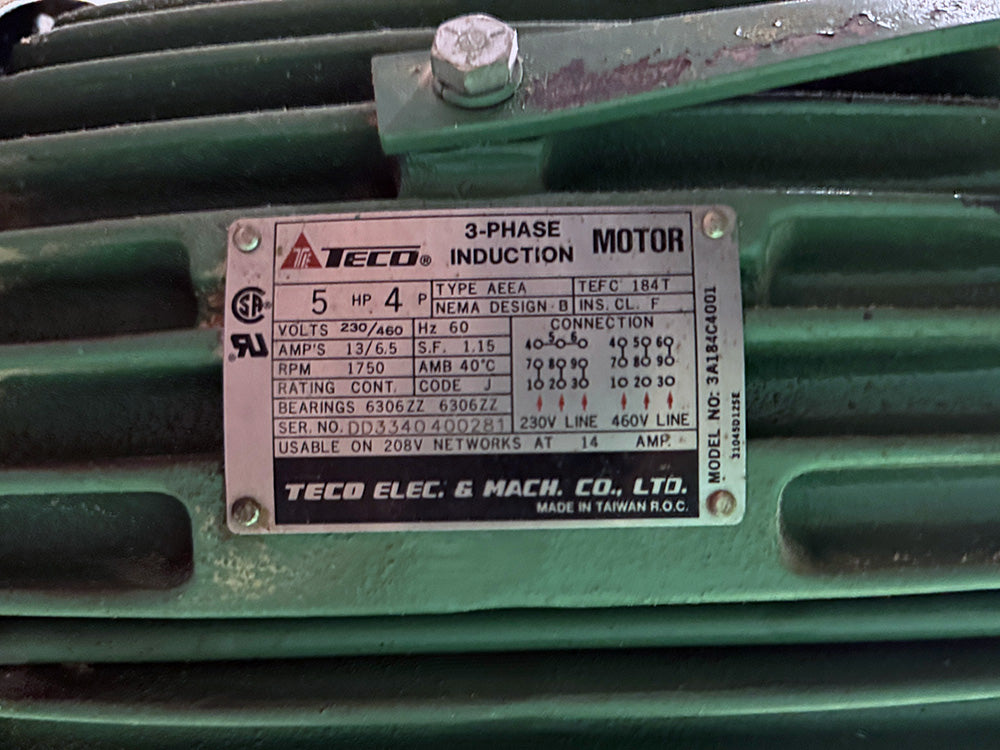

Drive Motor for Belt - 5HP / 1800 RPM
Floor Space Required - 75"x22"
Shipping Weight - 1200lbs
