Used RFS "SL3460" Radio Frequency Slant Edge Gluer

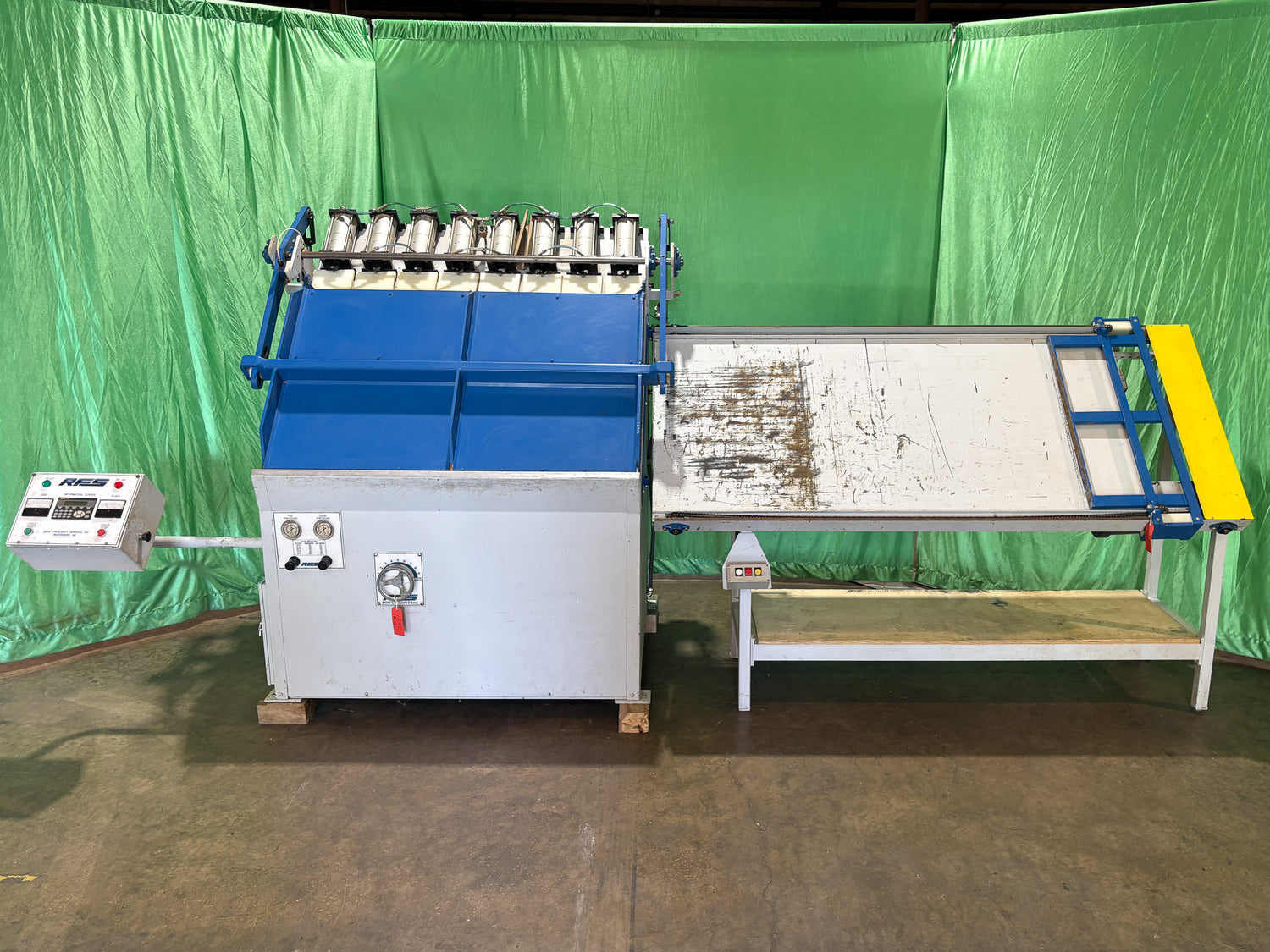

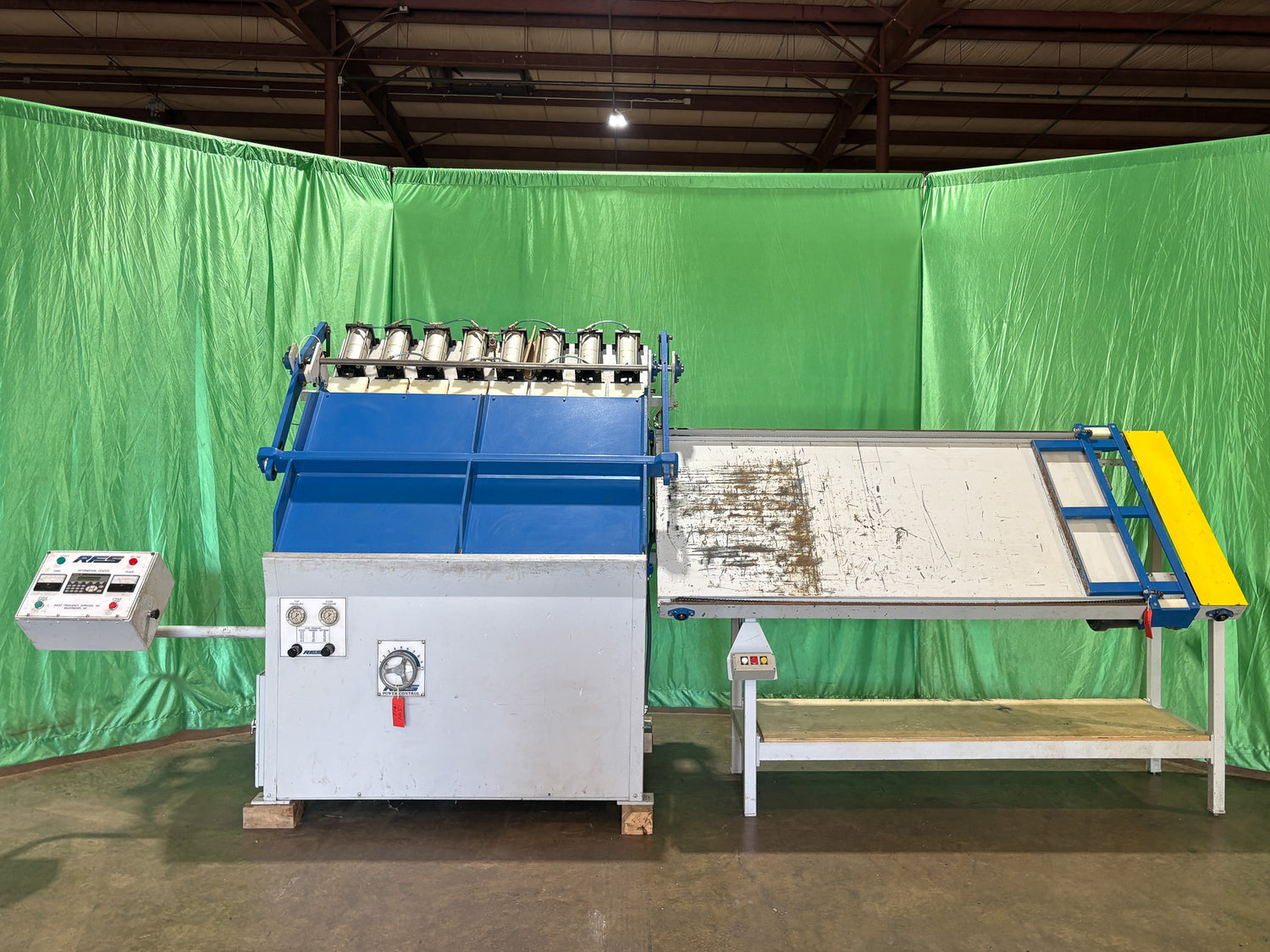

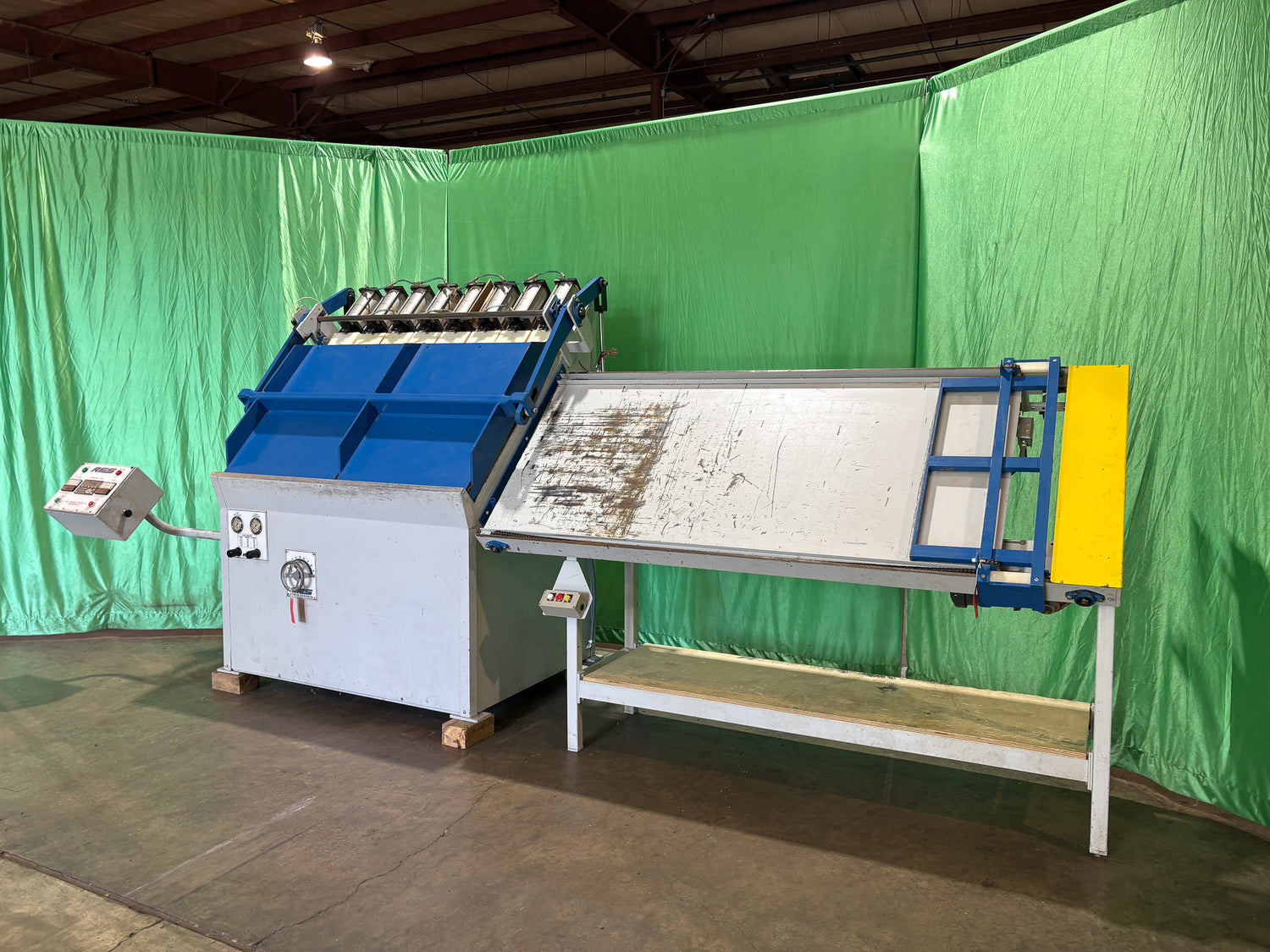

Used RFS "SL3460" Slant Edge Gluer

36" x 60", parts can be indexed through the machine.

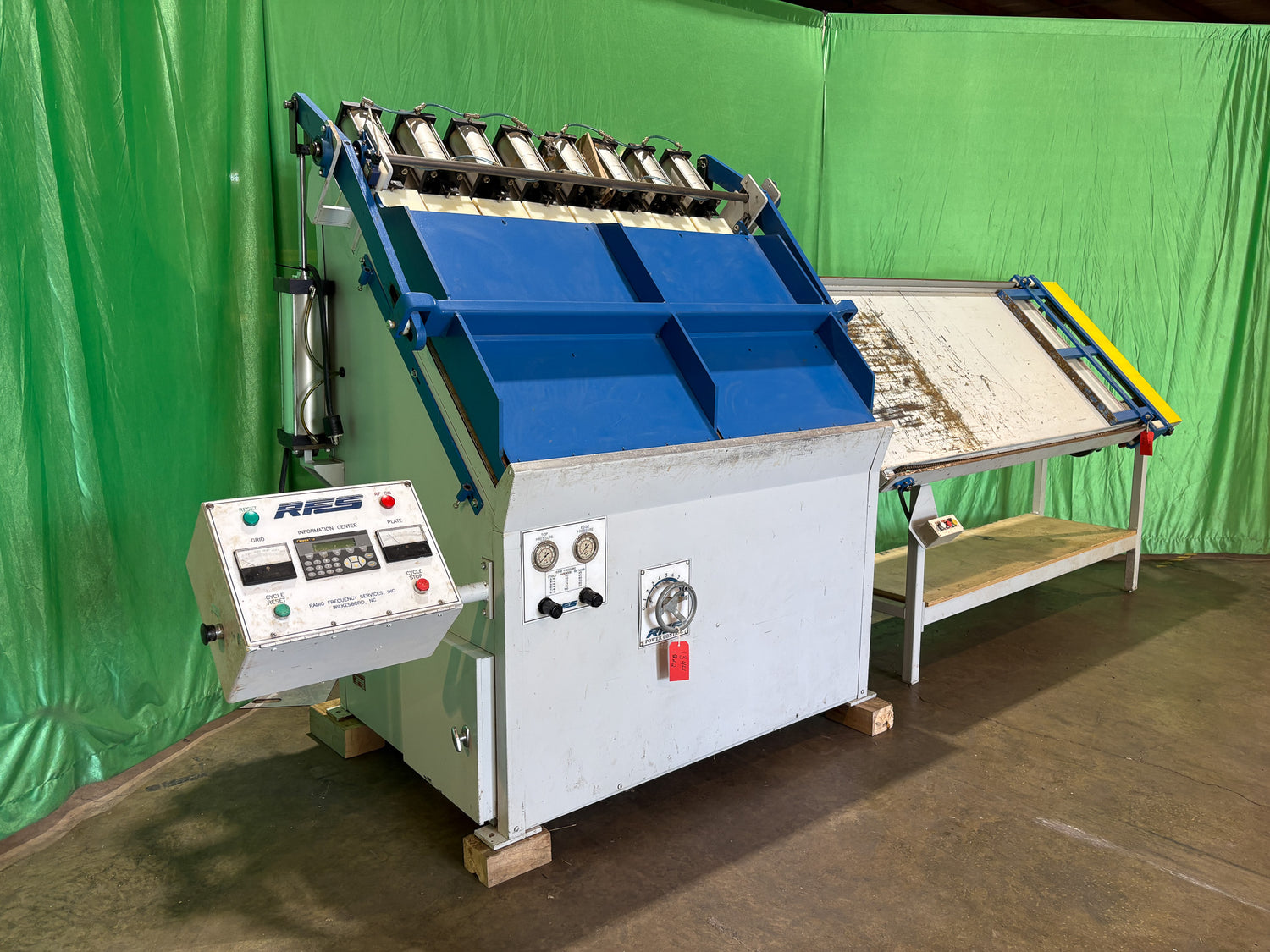

Slant-bed, end loading with hinged top platen

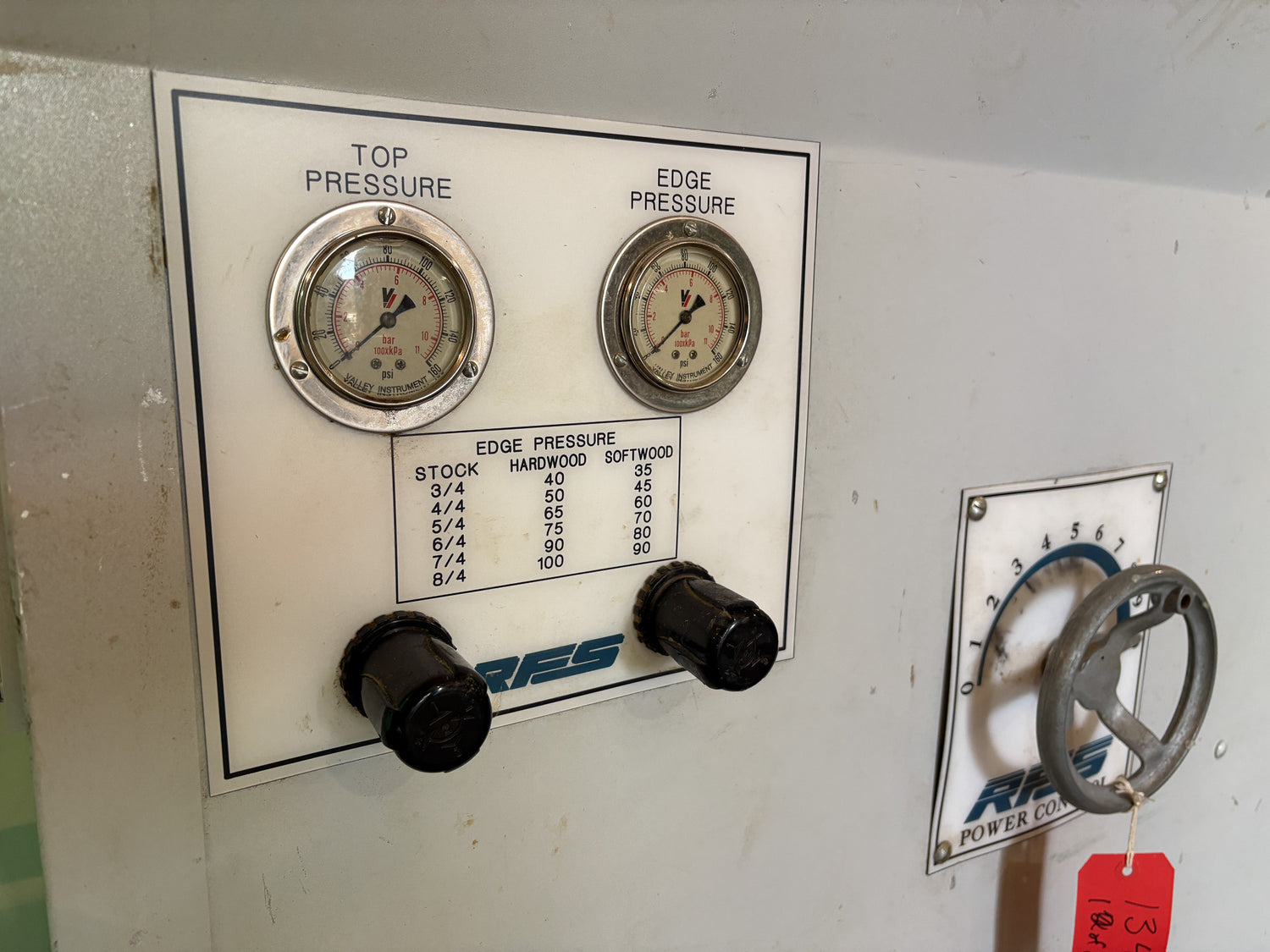

Side pressure with (8) 3" bore x 4" stroke pneumatic cylinders

Top pressure with (2) 3" bore pneumatic cylinders

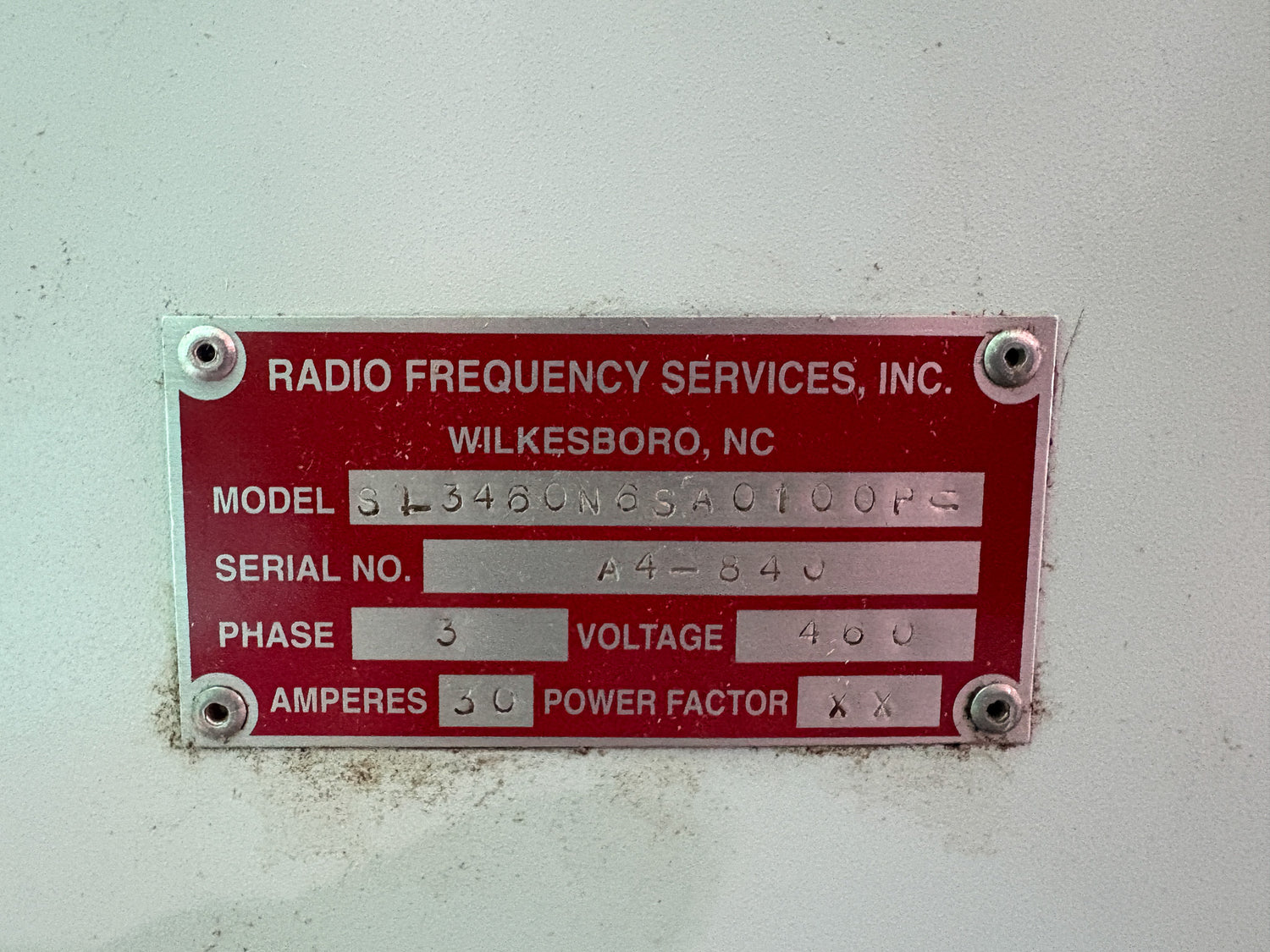

Wired 460 3 phase, will draw 30 amp.

The SL Series of Slant Bed Gluers are used to clamp and cure
components for a variety of applications including kitchen cabinets,
door frames, and furniture. The SL model is compact and requires
minimal floor space, but because of the radio frequency technology,  it has the capability for high production while providing consistent
glue joint strength.
